The Router

Welcome at the third part of the Quick Tour. You seem to have fallen in love with the CMF, getting this far! And that's a good thing, as you will learn about the backbone of the CMF in this chapter: The Router.

The Backbone of the CMF

As already said, the router is the backbone. To understand this, you have a good view of what a CMS tries to do. In a normal Symfony application, a route refers to a controller which can handle a specific entity. Another route refers to another controller which can handle another entity. This way, a route is tied to a controller. In fact, using the Symfony core you are also limited at this.

But if you look at the base of a CMS, it only needs to handle 1 type of entity: The Content. So most of the routes don't have to be tied to a controller anymore, as only one controller is needed. The Route has to be tied to a specific Content object, which - on its side - can reference a specific template and controller.

Other parts of the CMF are also related to the Router. To give 2 examples: The menu is created by generating specific routes using the Router and the blocks are displayed to specific routes (as they are related to a template).

Loading Routes from the PHPCR tree

In the first chapter, you have already learned that routes are loaded from the database using a special DynamicRouter. This way, not all routes need to be loaded each request.

Matching routes from a PHPCR is really simple. If you remember the previous chapter, you know that you can get the quick_tour page from PHPCR using /cms/simple/quick_tour. The URL to get this page is quick_tour. Some other examples:

1
2
3
4
5
6
/cms
    /simple
        /about       # /about Route
        /contact     # /contact Route
            /team    # /contact/team Route
            /docs    # /contact/docs Route

OK, you got it? The only thing the Router has to do is prefix the route with a specific path prefix and load that document. In the case of the SimpleCmsBundle, all routes are prefixed with /cms/simple.

You see that a route like /contact/team, which consist of 2 "path units", has 2 documents in the PHPCR tree: contact and team.

Chaining multiple Routers

You may need to have several prefixes or several routes. For instance, you may want to use both the DynamicRouter for the page routes, but also the static routing files from Symfony for your custom logic. To be able to do that, the CMF provides a ChainRouter. This router chains over multiple router and stops whenever a router matches.

By default, the ChainRouter overrides the Symfony router and only has the core router in its chain. You can add more routers to the chain in the configuration or by tagging the router services. For instance, the router used by the SimpleCmsBundle is a service registered by that bundle and tagged with cmf_routing.router.

Creating a new Route

Now you know the basics of routing, you can add a new route to the tree. In the configuration file, configure a new chain router so that you can put your new routes in /cms/routes:

  • YAML
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    # app/config/config.yml

    # ...
    cmf_routing:
        chain:
            routers_by_id:
                # the standard DynamicRouter
                cmf_routing.dynamic_router: 200

                # the core symfony router
                router.default: 100
        dynamic:
            persistence:
                phpcr:
                    route_basepaths:
                        - /cms/routes
                # /cms/routes is the default base path, the above code is
                # equivalent to:
                # phpcr: true

  • XML
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    <!-- app/config/config.xml -->
    <?xml version="1.0" encoding="UTF-8" ?>
    <container xmlns="http://symfony.com/schema/dic/services">
        <!-- ... -->

        <config xmlns="http://cmf.symfony.com/schema/dic/routing">
            <chain>
                <!-- the standard DynamicRouter -->
                <router-by-id id="cmf_routing.dynamic_router">200</router-by-id>

                <!-- the core symfony router -->
                <router-by-id id="router.default">100</router-by-id>
            </chain>

            <dynamic>
                <persistence>
                    <phpcr>
                        <route-basepath>/cms/routes</route-basepath>
                    </phpcr>
                    <!-- /cms/routes is the default base path, the above
                         code is equivalent to:
                         <phpcr />
                    --->
                </persistence>
            </dynamic>
        </config>
    </container>

  • PHP
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    // app/config/config.php
    $container->loadFromExtension('cmf_routing', array(
        'chain' => array(
            'routers_by_id' => array(
                // the standard DynamicRouter
                'cmf_routing.dynamic_router' => 200,

                // the core symfony router
                'router.default' => 100,
            ),
        ),
        'dynamic' => array(
            'persistence' => array(
                'phpcr' => array(
                    'route_basepaths' => '/cms/routes',
                ),
                /* /cms/routes is the default base path, the above code is
                   equivalent to:
                   'phpcr' => true,
                */
            ),
        ),
    ));


Now you can add a new Route to the tree using Doctrine:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
// src/Acme/DemoBundle/DataFixtures/PHPCR/LoadRoutingData.php
namespace Acme\DemoBundle\DataFixtures\PHPCR;

use Doctrine\Common\Persistence\ObjectManager;
use Doctrine\Common\DataFixtures\FixtureInterface;
use Doctrine\Common\DataFixtures\OrderedFixtureInterface;
use Doctrine\ODM\PHPCR\DocumentManager;

use PHPCR\Util\NodeHelper;

use Symfony\Cmf\Bundle\RoutingBundle\Doctrine\Phpcr\Route;

class LoadRoutingData implements FixtureInterface, OrderedFixtureInterface
{
    public function getOrder()
    {
        return 20;
    }

    public function load(ObjectManager $documentManager)
    {
        if (!$documentManager instanceof DocumentManager) {
            $class = get_class($documentManager);
            throw new \RuntimeException("Fixture requires a PHPCR ODM DocumentManager instance, instance of '$class' given.");
        }

        $session = $documentManager->getPhpcrSession();
        NodeHelper::createPath($session, '/cms/routes');

        $routesRoot = $documentManager->find(null, '/cms/routes');

        $route = new Route();
        // set $routesRoot as the parent and 'new-route' as the node name,
        // this is equal to:
        // $route->setName('new-route');
        // $route->setParentDocument($routesRoot);
        $route->setPosition($routesRoot, 'new-route');

        $page = $documentManager->find(null, '/cms/simple/quick_tour');
        $route->setContent($page);

        $documentManager->persist($route); // put $route in the queue
        $documentManager->flush(); // save it
    }
}

Above we implemented the OrderedFixtureInterface so that our routes were loaded in the correct sequence relative to other fixtures.

Now execute the doctrine:phpcr:fixtures:load command again.

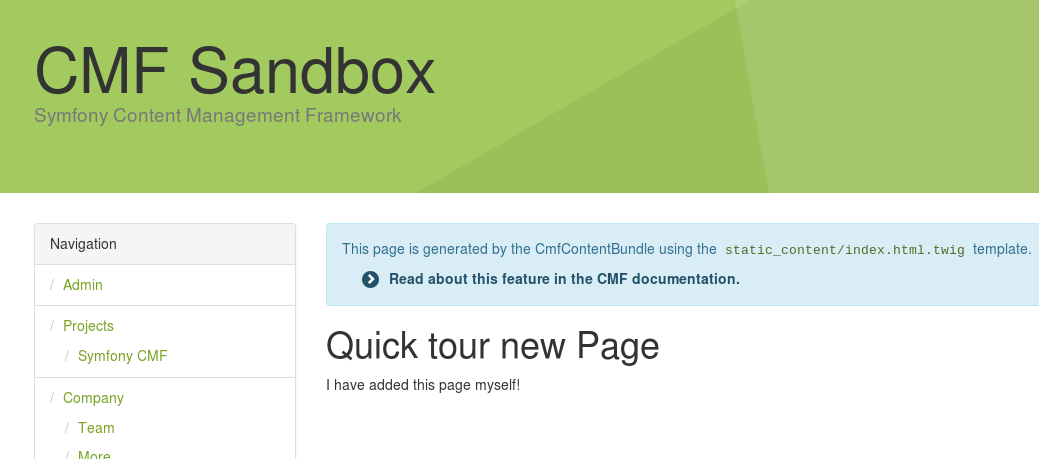

This creates a new node called /cms/routes/new-route, which will display our quick_tour page when you go to /new-route.

Tip

When doing this in a real app, you may want to use a RedirectRoute instead.

Final Thoughts

Now you reached the end of this article, you can say you really know the basics of the Symfony CMF. First, you have learned about the Request flow and quickly learned each new step in this process. After that, you have learned more about the default storage layer and the routing system.

The Routing system is created together with some developers from Drupal8. In fact, Drupal 8 uses the Routing component of the Symfony CMF. The Symfony CMF also uses some 3rd party bundles from others and integrated them into PHPCR. In the next chapter you'll learn more about those bundles and other projects the Symfony CMF is helping.
