The Backend - Sonata Admin

The Backend - Sonata Admin

In this chapter you will build an administration interface with the help of the SonataDoctrinePHPCRAdminBundle.

First, follow the Sonata installation guide, and then the instructions to set up the SonataPhpcrAdminIntegrationBundle.

Configuration

Now start a local webserver:

1
$ php bin/console server:run

That works? Great, now have a look at http://127.0.0.1:8000/admin/dashboard

No translations? Uncomment the translator in the configuration file:

  • YAML
    1
    2
    3
    4
    5
    6
    # app/config/config.yml

    # ...
    framework:
        # ...
        translator:      { fallback: "%locale%" }

  • XML
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    <!-- app/config/config.xml -->
    <?xml version="1.0" encoding="UTF-8" ?>
    <container xmlns="http://symfony.com/schema/dic/services"
        xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
        xmlns:framework="http://symfony.com/schema/dic/symfony"
        xsi:schemaLocation="http://symfony.com/schema/dic/services http://symfony.com/schema/dic/services/services-1.0.xsd
                            http://symfony.com/schema/dic/symfony http://symfony.com/schema/dic/symfony/symfony-1.0.xsd">

        <config xmlns="http://symfony.com/schema/dic/symfony">
            <!-- ... -->
            <translator fallback="%locale%" />
        </config>
    </container>

  • PHP
    1
    2
    3
    4
    5
    6
    7
    // app/config/config.php
    $container->loadFromExtension('framework', array(
        // ...
        'translator' => array(
            'fallback' => '%locale%',
        ),
    ));


Tip

See Sonata PHPCR-ODM Admin for more information on Sonata Admin and multi-language.

When looking at the admin dashboard, you will notice that there is an entry to administrate Routes. The administration class of the RoutingBundle has been automatically registered. However, you do not need this in your application as the routes are managed by the RoutingAutoBundle and not the administrator. You can disable the RoutingBundle admin:

  • YAML
    1
    2
    3
    4
    5
    6
    7
    8
    9
    # app/config/config.yml
    cmf_routing:
        # ...
        dynamic:
            # ...
            persistence:
                phpcr:
                    # ...
                    use_sonata_admin: false

  • XML
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    <!-- app/config/config.xml -->
    <?xml version="1.0" encoding="UTF-8" ?>
    <container xmlns="http://symfony.com/schema/dic/services">
        <config xmlns="http://cmf.symfony.com/schema/dic/routing">
            <dynamic>
                <!-- ... -->
                <persistence>
                    <phpcr use-sonata-admin="false"/>
                </persistence>
            </dynamic>
        </config>
    </container>

  • PHP
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    // app/config/config.php
    $container->loadFromExtension('cmf_routing', array(
        // ...
        'dynamic' => array(
            'persistence' => array(
                'phpcr' => array(
                    // ...
                    'use_sonata_admin' => false,
                ),
            ),
        ),
    ));


Tip

All Sonata Admin aware CMF bundles have such a configuration option and it prevents the admin class (or classes) from being registered.

Creating the Admin Classes

Create the following admin classes, first for the Page document:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
// src/AppBundle/Admin/PageAdmin.php
namespace AppBundle\Admin;

use Sonata\DoctrinePHPCRAdminBundle\Admin\Admin;
use Sonata\AdminBundle\Datagrid\DatagridMapper;
use Sonata\AdminBundle\Datagrid\ListMapper;
use Sonata\AdminBundle\Form\FormMapper;

class PageAdmin extends Admin
{
    protected function configureListFields(ListMapper $listMapper)
    {
        $listMapper
            ->addIdentifier('title', 'text')
        ;
    }

    protected function configureFormFields(FormMapper $formMapper)
    {
        $formMapper
            ->with('form.group_general')
                ->add('title', 'text')
                ->add('content', 'textarea')
            ->end()
        ;
    }

    public function prePersist($document)
    {
        $parent = $this->getModelManager()->find(null, '/cms/pages');
        $document->setParentDocument($parent);
    }

    protected function configureDatagridFilters(DatagridMapper $datagridMapper)
    {
        $datagridMapper->add('title', 'doctrine_phpcr_string');
    }

    public function getExportFormats()
    {
        return array();
    }
}

and then for the Post document - as you have already seen this document is almost identical to the Page document, so extend the PageAdmin class to avoid code duplication:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
// src/AppBundle/Admin/PostAdmin.php
namespace AppBundle\Admin;

use Sonata\DoctrinePHPCRAdminBundle\Admin\Admin;
use Sonata\AdminBundle\Datagrid\DatagridMapper;
use Sonata\AdminBundle\Datagrid\ListMapper;
use Sonata\AdminBundle\Form\FormMapper;

class PostAdmin extends PageAdmin
{
    protected function configureFormFields(FormMapper $formMapper)
    {
        parent::configureFormFields($formMapper);

        $formMapper
            ->with('form.group_general')
                ->add('date', 'date')
            ->end()
        ;
    }
}

Note

In the prePersist method of the PageAdmin you hard-code the parent path. You may want to modify this behavior to enable pages to be structured (for example to have nested menus).

Now you just need to register these classes in the dependency injection container configuration:

  • YAML
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    # src/AppBundle/Resources/config/services.yml
    services:
        app.admin.page:
            class: AppBundle\Admin\PageAdmin
            arguments:
                - ''
                - AppBundle\Document\Page
                - 'SonataAdminBundle:CRUD'
            tags:
                - { name: sonata.admin, manager_type: doctrine_phpcr, group: 'Basic CMS', label: Page }
            calls:
                - [setRouteBuilder, ['@sonata.admin.route.path_info_slashes']]
        app.admin.post:
            class: AppBundle\Admin\PostAdmin
            arguments:
                - ''
                - AppBundle\Document\Post
                - 'SonataAdminBundle:CRUD'
            tags:
                - { name: sonata.admin, manager_type: doctrine_phpcr, group: 'Basic CMS', label: 'Blog Posts' }
            calls:
                - [setRouteBuilder, ['@sonata.admin.route.path_info_slashes']]

  • XML
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    <!-- src/AppBundle/Resources/config/services.yml -->
    <?xml version="1.0" encoding="UTF-8" ?>
    <container xmlns="http://symfony.com/schema/dic/services"
        xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
        xsi:schemaLocation="http://symfony.com/schema/dic/services
            http://symfony.com/schema/dic/services/services-1.0.xsd">

        <!-- ... -->
        <services>
            <!-- ... -->
            <service id="aüü.admin.page"
                class="AppBundle\Admin\PageAdmin">

                <call method="setRouteBuilder">
                    <argument type="service" id="sonata.admin.route.path_info_slashes" />
                </call>

                <tag
                    name="sonata.admin"
                    manager_type="doctrine_phpcr"
                    group="Basic CMS"
                    label="Page"
                />
                <argument/>
                <argument>AppBundle\Document\Page</argument>
                <argument>SonataAdminBundle:CRUD</argument>
            </service>

            <service id="app.admin.post"
                class="AppBundle\Admin\PostAdmin">

                <call method="setRouteBuilder">
                    <argument type="service" id="sonata.admin.route.path_info_slashes" />
                </call>

                <tag
                    name="sonata.admin"
                    manager_type="doctrine_phpcr"
                    group="Basic CMS"
                    label="Blog Posts"
                />
                <argument/>
                <argument>AppBundle\Document\Post</argument>
                <argument>SonataAdminBundle:CRUD</argument>
            </service>
        </services>
    </container>

  • PHP
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    // src/AppBundle/Resources/config/services.php
    use Symfony\Component\DependencyInjection\Reference;
    // ...

    $container->register('app.admin.page', 'AppBundle\Admin\PageAdmin')
      ->addArgument('')
      ->addArgument('AppBundle\Document\Page')
      ->addArgument('SonataAdminBundle:CRUD')
      ->addTag('sonata.admin', array(
          'manager_type' => 'doctrine_phpcr',
          'group' => 'Basic CMS',
          'label' => 'Page'
      )
      ->addMethodCall('setRouteBuilder', array(
          new Reference('sonata.admin.route.path_info_slashes'),
      ))
    ;
    $container->register('app.admin.post', 'AppBundle\Admin\PostAdmin')
      ->addArgument('')
      ->addArgument('AppBundle\Document\Post')
      ->addArgument('SonataAdminBundle:CRUD')
      ->addTag('sonata.admin', array(
           'manager_type' => 'doctrine_phpcr',
           'group' => 'Basic CMS',
           'label' => 'Blog Posts'
      )
      ->addMethodCall('setRouteBuilder', array(
          new Reference('sonata.admin.route.path_info_slashes'),
      ))
    ;


Note

In the XML version of the above configuration you specify manager_type (with an underscore). This should be manager-type (with a hyphen) and is fixed in Symfony version 2.4.

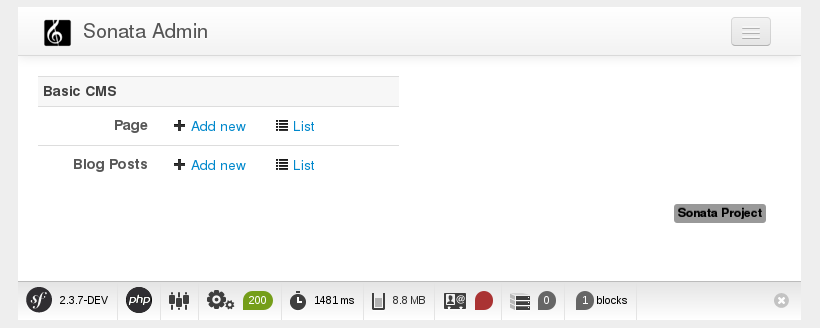

Check it out at http://localhost:8000/admin/dashboard

../_images/basic-cms-sonata-admin.png

Configure the Admin Tree on the Dashboard

Sonata admin provides a useful tree view of your whole content. You can click items on the tree to edit them, right-click to delete them or add children and drag and drop to reorganize your content.

Enable the CmfTreeBundle and the FOSJsRoutingBundle in your kernel:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
// app/AppKernel.php
class AppKernel extends Kernel
{
    // ...

    public function registerBundles()
    {
        $bundles = array(
            // ...
            new FOS\JsRoutingBundle\FOSJsRoutingBundle(),
            new Symfony\Cmf\Bundle\TreeBrowserBundle\CmfTreeBrowserBundle(),
        );

        // ...
    }
}

Now publish your assets again:

1
$ php bin/console assets:install --symlink web/

Routes used by the tree in the frontend are handled by the FOSJsRoutingBundle. The relevant routes are tagged with the expose flag, they are available automatically. However, you need to load the routes of the TreeBundle and the FOSJsRoutingBundle:

  • YAML
    1
    2
    3
    4
    5
    6
    7
    # app/config/routing.yml
    cmf_tree:
        resource: .
        type: 'cmf_tree'

    fos_js_routing:
        resource: "@FOSJsRoutingBundle/Resources/config/routing/routing.xml"

  • XML
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    <!-- app/config/routing.xml -->
    <?xml version="1.0" encoding="UTF-8" ?>
    <routes xmlns="http://symfony.com/schema/routing"
        xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
        xsi:schemaLocation="http://symfony.com/schema/routing
            http://symfony.com/schema/routing/routing-1.0.xsd">

        <import resource="." type="cmf_tree" />

        <import resource="@FOSJsRoutingBundle/Resources/config/routing/routing.xml" />

    </routes>

  • PHP
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    // app/config/routing.php
    use Symfony\Component\Routing\RouteCollection;

    $collection = new RouteCollection();

    $collection->addCollection($loader->import('.', 'cmf_tree'));

    $collection->addCollection($loader->import(
        "@FOSJsRoutingBundle/Resources/config/routing/routing.xml"
    ));

    return $collection;


Add the tree block to the sonata_block configuration and tell sonata admin to display the block (be careful to add to the existing configuration and not to create another section!):

  • YAML
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    # app/config/config.yml

    # ...
    sonata_block:
        blocks:
            # ...
            sonata_admin_doctrine_phpcr.tree_block:
                settings:
                    id: '/cms'
                contexts: [admin]

    sonata_admin:
        dashboard:
            blocks:
                - { position: left, type: sonata_admin_doctrine_phpcr.tree_block }
                - { position: right, type: sonata.admin.block.admin_list }

  • XML
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    <!-- app/config/config.xml -->
    <?xml version="1.0" encoding="UTF-8" ?>
    <container xmlns="htp://symfony.com/schema/dic/services">

        <config xmlns="http://sonata-project.org/schema/dic/block">
            <! ... -->
            <block id="sonata_admin_doctrine_phpcr.tree_block">
                <setting id="id">/cms</setting>
                <context>admin</context>
            </block>
        </config>

        <config xmlns="http://sonata-project.org/schema/dic/admin">
            <dashboard>
                <block position="left" type="sonata_admin_doctrine_phpcr.tree_block"/>
                <block position="right" type="sonata.admin.block.admin_list"/>
            </dashboard>
        </config>

    </container>

  • PHP
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    // app/config/config.php
    $container->loadFromExtension('sonata_block', array(
        'blocks' => array(
            // ...
            'sonata_admin_doctrine_phpcr.tree_block' => array(
                'settings' => array(
                    'id' => '/cms',
                ),
                'contexts' => array('admin'),
            ),
        ),
    ));

    $container->loadFromExtension('sonata_admin', array(
        'dashboard' => array(
            'blocks' => array(
                array('position' => 'left', 'type' => 'sonata_admin_doctrine_phpcr.tree_block'),
                array('position' => 'right', 'type' => 'sonata.admin.block.admin_list'),
            ),
        ),
    ));


To see your documents on the tree in the admin dashboard tree, you need to tell sonata about them:

  • YAML
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    sonata_doctrine_phpcr_admin:
        document_tree_defaults: [locale]
        document_tree:
            Doctrine\ODM\PHPCR\Document\Generic:
                valid_children:
                    - all
            AppBundle\Document\Page:
                valid_children:
                    - AppBundle\Document\Post
            AppBundle\Document\Post:
                valid_children: []
            # ...

  • XML
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    <?xml version="1.0" encoding="UTF-8" ?>
    <container xmlns="http://symfony.com/schema/dic/services">

        <config xmlns="http://sonata-project.org/schema/dic/doctrine_phpcr_admin" />

            <document-tree-default>locale</document-tree-default>

            <document-tree class="Doctrine\ODM\PHPCR\Document\Generic">
                <valid-child>all</valid-child>
            </document-tree>

            <document-tree class="AppBundle\Document\Post">
                <valid-child>AppBundle\Document\Post</valid-child>
            </document-tree>

            <document-tree class="AppBundle\Document\Post" />

            <!-- ... -->
        </config>
    </container>

  • PHP
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    $container->loadFromExtension('sonata_doctrine_phpcr_admin', array(
        'document_tree_defaults' => array('locale'),
        'document_tree' => array(
            'Doctrine\ODM\PHPCR\Document\Generic' => array(
                'valid_children' => array(
                    'all',
                ),
            ),
            'AppBundle\Document\Post' => array(
                'valid_children' => array(
                    'AppBundle\Document\Post',
                ),
            ),
            'AppBundle\Document\Post' => array(
                'valid_children' => array(),
            ),
            // ...
    ));


Tip

To have a document show up in the tree, it needs its own entry. You can allow all document types underneath it by having the all child. But if you explicitly list allowed children, the right click context menu will propose only those documents. This makes it easier for your users to not make mistakes.

This work, including the code samples, is licensed under a Creative Commons BY-SA 3.0 license.
