How to Dump WorkflowsΒΆ

To help you debug your workflows, you can dump a representation of your workflow with the use of a DumperInterface. Use the GraphvizDumper to create a PNG image of the workflow defined above:

// dump-graph.php
$dumper = new GraphvizDumper();
echo $dumper->dump($definition);
1
$ php dump-graph.php | dot -Tpng -o graph.png

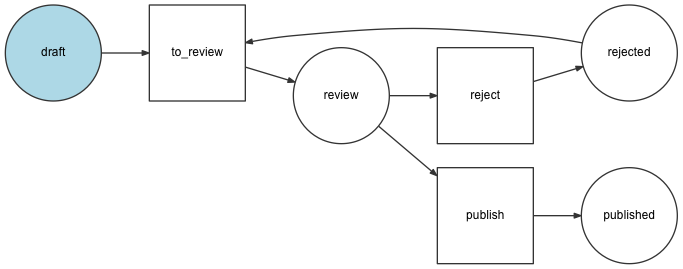

The result will look like this:

../_images/blogpost.png

Inside a Symfony application, you can dump the dot file with the workflow:dump command:

1
$ php bin/console workflow:dump name | dot -Tpng -o graph.png

Note

The dot command is part of Graphviz. You can download it and read more about it on Graphviz.org.
