Publish Workflow

The publish workflow system allows to control what content is available on the site. This is similar to the Symfony2 Security component. But contrary to the security context, the publish check can be executed even when no firewall is in place and the security context thus has no token (see Symfony2 Authorization).

The publish workflow is also tied into the security workflow: The CoreBundle registers a security voter that forwards security checks to the publish workflow. This means that if you always have a firewall, you can just use the normal security context and the Twig function is_granted to check for publication.

Tip

A good introduction to the Symfony core security can be found in the Security Chapter of the Symfony2 book.

The default publish workflow corresponds to the following diagram:

../../_images/core_pwf_workflow.png

The return values for getPublishStartDate and getPublishEndDate can be null, in which case the start or end date is unbounded. For example, if the end date is null and the start date is 2013-09-29 then the object will be published on the start date and will never be "unpublished".

Check if Content is Published

The Bundle provides the cmf_core.publish_workflow.checker service, which implements the SecurityContextInterface of the Symfony Security component. The method to check publication is isGranted(), same as with the security context.

This method is used as when doing ACL checks: The first argument is the desired action, the second the content object you want to do the action on.

Currently the only actions supported by the default voters are VIEW and VIEW_ANONYMOUS. Having the right to view means that the current user is allowed to see this content either because it is published or because of their specific permissions. In some contexts, your application might not want to show unpublished content even to privileged users so as not to confuse them. For this, the "view anonymous" permission is used to check if a content is published.

The workflow checker is configured with a role that is allowed to bypass publication checks so that it can see unpublished content. This role should be given to editors. The default name of the role is ROLE_CAN_VIEW_NON_PUBLISHED.

  • YAML
    1
    2
    3
    4
    # app/config/security.yml
    security:
        role_hierarchy:
            ROLE_EDITOR: ROLE_CAN_VIEW_NON_PUBLISHED

  • XML
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    <!-- app/config/security.xml -->
    <?xml version="1.0" encoding="UTF-8" ?>
    <srv:container xmlns="http://symfony.com/schema/dic/security"
        xmlns:srv="http://symfony.com/schema/dic/services">

        <config>
            <role id="ROLE_EDITOR">ROLE_CAN_VIEW_NON_PUBLISHED</role>
        </config>

    </srv:container>

  • PHP
    1
    2
    3
    4
    5
    6
    // app/config/security.php
    $container->loadFromExtension('security', [
        'role_hierarchy' => [
            'ROLE_EDITOR' => 'ROLE_CAN_VIEW_NON_PUBLISHED',
        ],
    ]);


Once a user with ROLE_CAN_VIEW_NON_PUBLISHED is logged in - meaning there is a firewall in place for the path in question - they will have the permission to view unpublished content as well:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
use Symfony\Cmf\Bundle\CoreBundle\PublishWorkflow\PublishWorkflowChecker;

// check if current user is allowed to see this document
$publishWorkflowChecker = $container->get('cmf_core.publish_workflow.checker');
if ($publishWorkflowChecker->isGranted(
        PublishWorkflowChecker::VIEW_ATTRIBUTE,
        $document
    )
) {
    // ...
}

// check if the document is published. even if the current role would allow
// to see the document, this will still return false if the document is not
// published
if ($publishWorkflowChecker->isGranted(
        PublishWorkflowChecker::VIEW_ANONYMOUS_ATTRIBUTE,
        $document
    )
) {
    // ...
}

To check publication in a template, use the Twig function cmf_is_published, in PHP templating the $view['cmf']->isPublished method:

  • Twig
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    {# check if document is published, regardless of current users role #}
    {% if cmf_is_published(page) %}
        {# ... output the document #}
    {% endif %}

    {#
        check if current logged in user is allowed to view the document either
        because it is published or because the current user may view unpublished
        documents.
    #}
    {% if is_granted('VIEW', page) %}
        {# ... output the document #}
    {% endif %}

  • PHP
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    <!-- check if document is published, regardless of current users role -->
    <?php if ($view['cmf']->isPublished($page)) : ?>
        <!-- ... output the document -->
    <?php endif ?>

    <!--
        check if current logged in user is allowed to view the document either
        because it is published or because the current user may view unpublished
        documents.
    -->
    <?php if ($view['security']->isGranted('VIEW', $page)) : ?>
        <!-- ... output the document -->
    <?php endif ?>


Note

Templating explains all templating helper functions provided by the CMF. Those helpers already use the publish workflow where applicable.

Code that loads content should do the publish checks. Thanks to a request listener, routes and the main content provided by the DynamicRouter are checked automatically already.

It is possible to explicitly set the security token on the workflow checker. But by default, the checker will acquire the token from the default security context, and if there is none (typically when there is no firewall in place for that URL), an AnonymousToken is created on the fly.

If you check for VIEW and not VIEW_ANONYMOUS, the first check is whether the security context knows the current user and if that user is granted the bypass role. If so, access is granted, otherwise the decision is delegated to a AccessDecisionManager which calls all voters with the requested attributes, the object and the token.

The decision manager is configured for an unanimous vote with "allow if all abstain". This means a single voter saying ACCESS_DENIED is enough for the content to be considered not published. If all voters abstain (for example when the content in question does not implement any workflow features) the content is still considered published.

Making Documents Publish Workflow Aware

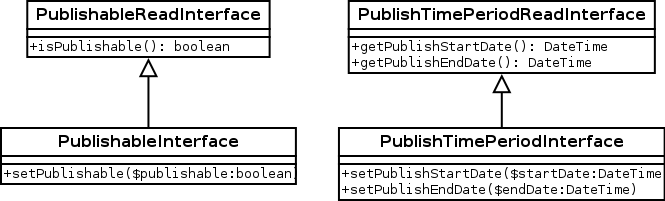

The publish workflow component features 4 interfaces: PublishableInterface, PublishTimePeriodInterface and corresponding read-only interfaces.

../../_images/core_pwf_interfaces.png

The read-only interfaces should be used when modifying the information is not desired.

Below is an example publish workflow implementation:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
namespace AppBundle\Document;

use Symfony\Cmf\Bundle\CoreBundle\PublishWorkflow\PublishableInterface;
use Symfony\Cmf\Bundle\CoreBundle\PublishWorkflow\PublishTimePeriodInterface;

class Post implements PublishableInterface, PublishTimePeriodInterface
{
    // ... properties and methods

    /**
     * @var \DateTime
     */
    protected $publishStartDate;

    /**
     * @var \DateTime
     */
    protected $publishEndDate;

    /**
     * @var boolean
     */
    protected $isPublishable;

    public function setPublishStartDate(\DateTime $startDate = null)
    {
        $this->publishStartDate = $startDate;
    }

    public function getPublishStartDate()
    {
        return $this->publishStartDate;
    }

    public function setPublishEndDate(\DateTime $endDate = null)
    {
        $this->publishEndDate = $endDate;
    }

    public function getPublishEndDate()
    {
        return $this->publishEndDate;
    }

    public function isPublishable()
    {
        return $this->isPublishable;
    }

    public function setIsPublishable($boolean)
    {
        $this->isPublishable = $boolean;
    }
}

Publish Voters

A voter must implement the VoterInterface. A content object will be passed and it has to decide whether it is published according to its rules. The CoreBundle provides a couple of generic voters (PublishableVoter and TimePeriodVoter) that check the content for having an interface exposing the methods they need. If the content implements the interface, they check the parameter and return ACCESS_GRANTED or ACCESS_DENIED, otherwise they return ACCESS_ABSTAIN.

As voting is unanimous, each voter returns ACCESS_GRANTED if its criteria is met, but if a single voter returns ACCESS_DENIED, the content is considered not published.

You can also implement your own voters for additional publication behavior.

PublishableVoter

This voter checks on the PublishableReadInterface which simply has a method to return a boolean value.

  • isPublishable: If the object should be considered for publication or not.

TimePeriodVoter

This voter checks on the PublishTimePeriodReadInterface which defines a start and end date. A date may be null to indicate "always started" resp. "never ending".

  • getPublishStartDate: If non-null, the date from which the document should start being published;
  • getPublishEndDate: If non-null, the date from which the document should stop being published.

Custom Voters

To build voters with custom logic, you need to implement VoterInterface and define a service with the tag cmf_published_voter. This is similar to the security.voter tag, but adds your voter to the publish workflow. As with the security voters, you can specify a priority, though it is of limited use as the access decision must be unanimous. If you have more expensive checks, you can lower the priority of those voters:

  • YAML
    1
    2
    3
    4
    5
    6
    # app/config/services.yml
    services:
        app.publishable_voter:
            class: "AppBundle\Security\PublishableVoter"
            tags:
                - { name: cmf_published_voter, priority: 30 }

  • XML
    1
    2
    3
    4
    5
    6
    7
    8
    9
    <!-- app/config/services.xml -->
    <?xml version="1.0" encoding="UTF-8" ?>
    <container xmlns="http://symfony.com/schema/dic/services">
        <service id="app.publishable_voter"
            class="AppBundle\Security\PublishableVoter">

            <tag name="cmf_published_voter" priority="30"/>
        </service>
    </container>

  • PHP
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    // app/config/config.php
    use Symfony\Component\DependencyInjection\Definition;
    use AppBundle\Security\PublishableVoter;

    $container
        ->register(
            'app.publishable_voter',
            PublishableVoter::class
        )
        ->addTag('cmf_published_voter', ['priority' => 30])
    ;


The workflow checker will create an AnonymousToken on the fly if the security context has none. This means that voters must be able to handle this situation when accessing the user. Also when accessing the security context, they first must check if it has a token and otherwise they should not call it to avoid triggering an exception. If a voter only gives access if the current user fulfills some requirement, it simply has to return ACCESS_DENIED if there is no current user.

Publication Request Listener

The DynamicRouter places the route object and the main content - if the route has a main content - into the request attributes. Unless you disable the cmf_core.publish_workflow.request_listener, this listener will listen on all requests and check publication of both the route object and the main content object.

This means that custom templates for templates_by_class and the controllers of controllers_by_class need not check for publication explicitly as its already done.

Editing Publish Workflow Information

There is a write interface for each publish workflow too, defining setter methods. You can implement the write interfaces in your models to make publication information editable. Instead of implementing PublishableReadInterface resp. PublishTimePeriodReadInterface, implement the interfaces PublishableInterface and / or PublishTimePeriodInterface in your models.

There is a Sonata admin extension available to edit workflow information on any document implementing the interface.
