Chapter 6. Edit and New Views Configuration

This chapter explains how to customize the read-and-write views: edit and new. You'll learn all their configuration options and how to override or tweak their templates.

Edit, New and Form Views

The Edit View is displayed when modifying the contents of any existing entity. The New View is used when creating new items of the given entity. The design of both views is almost identical:

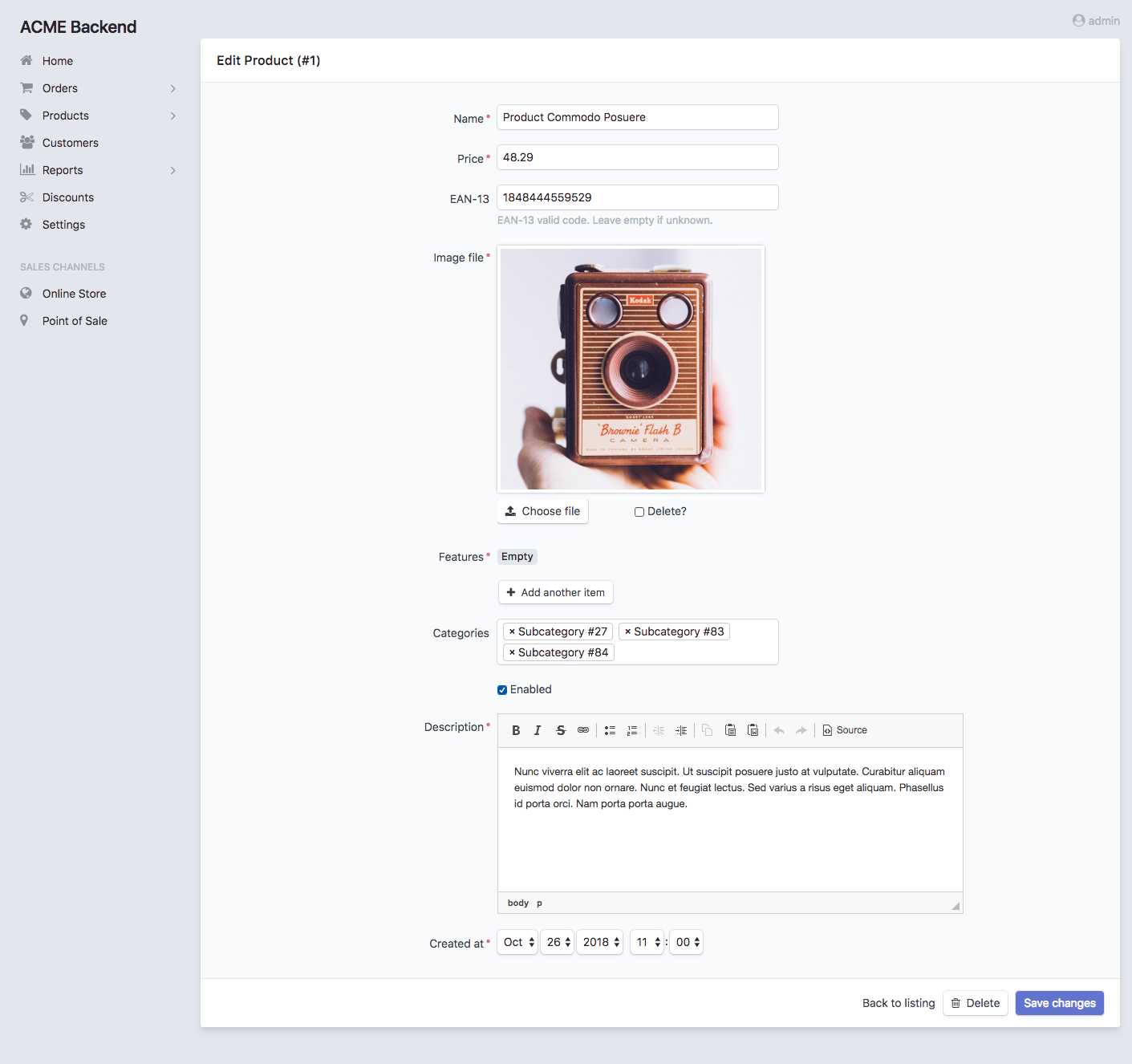

Edit view interface

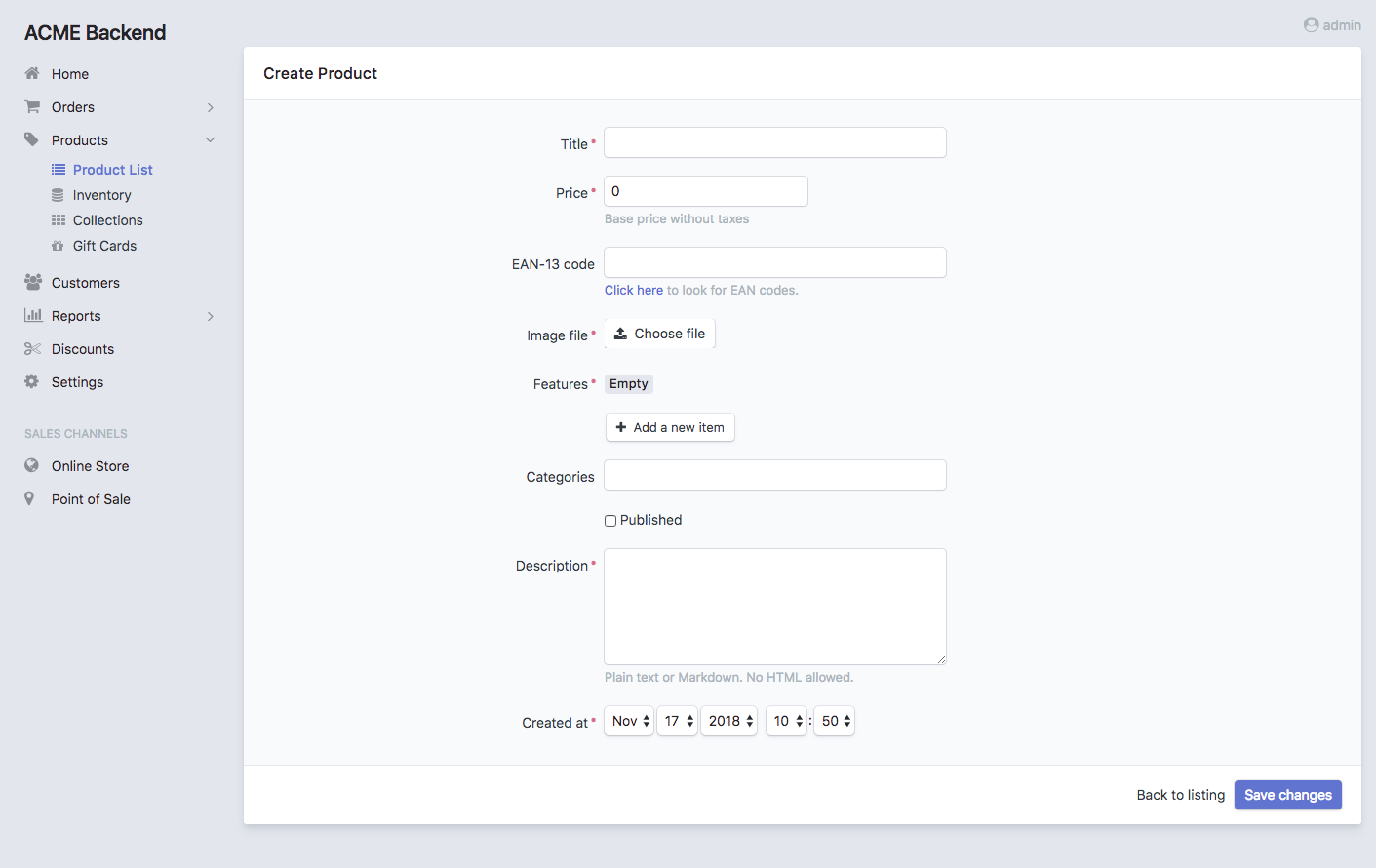

The Special form View

Most of the times you apply the same or very similar configuration to both the edit and new views. Instead of duplicating the configuration, you can use the special form view:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
# config/packages/easy_admin.yaml
easy_admin:
    entities:
        Customer:
            class: App\Entity\Customer
            form:  # <-- 'form' is applied to both 'new' and 'edit' views
                fields:
                    - 'id'
                    - { property: 'email', type: 'email', label: 'Contact' }
                    # ...
    # ...

Any option defined in the form view is copied into the new and edit views. However, any option defined in the edit and new view overrides the corresponding form option. In other words, always use the form action to define the common configuration, and then use the new and edit views to define just the specific options you want to override:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
# config/packages/easy_admin.yaml
easy_admin:
    entities:
        Customer:
            class: App\Entity\Customer
            form:
                title: 'Add customer'
                form_options: { validation_groups: ['Default'] }
            new:
                form_options: { validation_groups: ['Default', 'Customer'] }
            edit:
                title:  'Edit customer'
    # ...

The above configuration is equivalent to the following:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
# config/packages/easy_admin.yaml
easy_admin:
    entities:
        Customer:
            class: App\Entity\Customer
            new:
                title:  'Add customer'
                form_options: { validation_groups: ['Default', 'Customer'] }
            edit:
                title:  'Edit customer'
                form_options: { validation_groups: ['Default'] }
    # ...

The merging of the form fields configuration is done recursively, so you can change or add any option to any property. In addition, the following processing takes place:

  1. All the fields defined in the form view are copied in the same order into the edit and new views.
  2. Any field defined in the edit or new view which is not present in the form view is added after the form fields.
  3. The edit and new views can remove any field defined in the form view just by prefixing the name of the removed field with a dash - (e.g. add a property called -name to remove the name property defined in form)

Consider the following complex form field configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
# config/packages/easy_admin.yaml
easy_admin:
    entities:
        Customer:
            class: App\Entity\Customer
            form:
                fields:
                    - id
                    - { property: 'name', icon: 'user' }
                    - { property: 'email', css_class: 'input-large' }
            new:
                fields:
                    - '-id'
                    - { property: 'email', type_options: { required: false } }
            edit:
                fields:
                    - { property: 'name', icon: 'customer' }
                    - { property: 'email', help: 'Phone number is preferred' }
                    - phone
    # ...

The above configuration is equivalent to the following:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
# config/packages/easy_admin.yaml
easy_admin:
    entities:
        Customer:
            class: App\Entity\Customer
            new:
                fields:
                    - { property: 'name', icon: 'user' }
                    - { property: 'email', css_class: 'input-large', type_options: { required: false } }
            edit:
                fields:
                    - id
                    - { property: 'name', icon: 'customer' }
                    - { property: 'email', css_class: 'input-large', help: 'Phone number is preferred' }
                    - phone
    # ...

General Configuration

In order to make examples more concise, this section only shows the configuration for the special form view, but you can apply the same options to the other edit and new views.

Customize the Title of the Page

This option refers both to the value of the <title> element and to the visible title displayed at the top of the page. By default the title is just the name of the entity. Define the title option to set a custom page title:

1
2
3
4
5
6
7
8
9
# config/packages/easy_admin.yaml
easy_admin:
    entities:
        Customer:
            class: App\Entity\Customer
            label: 'Customers'
            form:
                title: "Add/edit customers"
        # ...

The title option can include the following special variables:

  • %entity_label%, resolves to the value defined in the label option of the entity. If you haven't defined it, this value will be equal to the entity name. In the example above, this value would be Customers.
  • %entity_name%, resolves to the entity name, which is the YAML key used to configure the entity in the backend configuration file. In the example above, this value would be Customer.
  • %entity_id%, it's only available for the edit view and it resolves to the value of the primary key of the entity being edited. Even if the option is called entity_id, it also works for primary keys with names different from id.

Caution

In Symfony applications, YAML values enclosed with % and % have a special meaning (they are considered container parameters). Escape these values doubling the % characters:

1
2
3
4
5
6
7
8
9
# config/packages/easy_admin.yaml
easy_admin:
    entities:
        Customer:
            class: App\Entity\Customer
            label: 'Customers'
            form:
                title: '%%entity_label%% listing'
        # ...

If several entities use the same custom title, you can define the default title for all entities in the global edit.title and new.title options (these global titles are always overridden by the title defined by each entity):

1
2
3
4
5
6
# config/packages/easy_admin.yaml
easy_admin:
    edit:
        title: '%%entity_label%%_edit'
    new:
        title: 'New %%entity_label%%'

Display a Help Message in the Page

Entities can define a global help message that is displayed below the title of the page. This is useful to add instructions or warning messages for the end users (e.g. "The upload process can take a lot of time (don't close the browser window)").

The help message is defined with the help configuration option, which can be added to the entity (all views display the same message) and to each of the entity views:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
# config/packages/easy_admin.yaml
easy_admin:
    entities:
        Customer:
            class: App\Entity\Customer
            help: 'Global message displayed in all views'
            # ...
            form:
                help: 'The form view overrides the global help message'
                # ...
            edit:
                # 'help' is not defined, so the global help message is displayed
                # ...
            new:
                # use the null value to not display the inherited global help message
                help: null
                # ...
        # ...

Customize the Properties Displayed

By default, the edit and new views display all the entity properties. Use the fields option to explicitly set the properties to display in each view:

1
2
3
4
5
6
7
8
# config/packages/easy_admin.yaml
easy_admin:
    entities:
        Customer:
            class: App\Entity\Customer
            form:
                fields: ['firstName', 'lastName', 'phone', 'email']
    # ...

This option is also useful to reorder the form fields, because by default they are displayed in the same order as defined in the related Doctrine entity.

Note

Fields that represent an association with another entity are displayed as <select> lists. For that reason, you must define the __toString() magic method in any entity which is used in a Doctrine relation. Otherwise you'll see the following error message: Catchable Fatal Error: Object of class XY could not be converted to string

Virtual Properties

The fields option can also include properties that are not defined in the Doctrine entities. These properties are called "virtual properties" and the only requirement is that they must define a setter method for them. For example, if your entity contains a setName() method but not a name property, the fields option can include the name virtual property to set its value.

Note

The values or virtual properties are set using the PropertyAccess component from Symfony, which requires to follow a strict syntax for setter names: set + camelized version of the property name. Example: name -> setName(); firstName -> setFirstName(); first_and_last_name -> setFirstAndLastName().

Defining Custom Form Options

By default, the forms built to create and edit entities only define the data_class configuration option:

1
2
3
4
$form = $this->createFormBuilder($entity, array(
    'data_class' => 'App\Entity\Customer',
))
-> ...

If you need to pass custom options to the forms, define the form_options option under the edit, new or form options:

1
2
3
4
5
6
7
8
# config/packages/easy_admin.yaml
easy_admin:
    entities:
        Customer:
            class: App\Entity\Customer
            form:
                form_options: { validation_groups: ['Default', 'my_validation_group'] }
    # ...

The above example makes the backend use the following PHP code to build the form:

1
2
3
4
5
$form = $this->createFormBuilder($entity, array(
    'data_class' => 'App\Entity\Customer',
    'validation_groups' => array('Default', 'my_validation_group'),
))
-> ...

Customize the Form Fields

When form fields are not configured explicitly, the backend renders them with the most appropriate widget according to their data types. If you prefer to control their appearance, start by using the extended field configuration:

1
2
3
4
5
6
7
8
# config/packages/easy_admin.yaml
easy_admin:
    entities:
        Customer:
            class: App\Entity\Customer
            form:
                fields: ['name', { property: 'email', label: 'Contact' }]
    # ...

Instead of using a string to define the property (e.g. 'email') you have to define a hash with the name of the property ({ property: 'email' }) and the options you want to define for it ({ ..., label: 'Contact' }).

If your entity contains lots of properties, consider using the alternative YAML sequence syntax to improve the legibility of your backend configuration. The following example is equivalent to the above example:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
# config/packages/easy_admin.yaml
easy_admin:
    entities:
        Customer:
            class: App\Entity\Customer
            form:
                fields:
                    - name
                    - { property: 'email', label: 'Contact' }
    # ...

These are the options that you can define for each field:

  • property (mandatory): the name of the property to bet set (in new view) or modified (in edit view). This is the only mandatory option when using the extended field configuration format.

  • label (optional): the content displayed in the <label> element of the form field. The default label is the "humanized" version of the property name (e.g. published is displayed as Published and dateOfBirth as Date of birth).

    If the form field renders a collection of items, the numeric auto-increment label of the collection items is hidden by default. If you want to display it, set the entry_options.label option to true: - { property: '...', type: 'collection', type_options: { entry_options: { label: true } }

  • help (optional): the help message displayed below the form field.

  • css_class (optional): the CSS class applied to the parent HTML element that contains the entire form field. For example, when using the default Bootstrap form theme, this value is applied to the <div> element which wraps the label, the widget and the error messages of the field.

  • type (optional): the Symfony Form type used to render this field. In addition to its fully qualified class name (e.g. Symfony\Component\Form\Extension\Core\Type\EmailType), you can also use the short type name (e.g. email) (the map between names and classes is done internally by the bundle). The allowed values are:

    • Any of the Symfony Form types.
    • Any of the custom EasyAdmin form types: easyadmin_autocomplete (they are explained later in this chapter).
  • type_options (optional), a hash with the options passed to the Symfony Form type used to render the field.

The type_options is the most powerful option because it literally comprises tens of options suited for each form type:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
# config/packages/easy_admin.yaml
easy_admin:
    entities:
        Customer:
            class: App\Entity\Customer
            form:
                fields:
                    - 'id'
                    - { property: 'email', type: 'email', type_options: { trim: true } }
                    - { property: 'interests', type_options: { expanded: true, multiple: true } }
                    - { property: 'updated_at', type_options: { widget: 'single_text' } }

Read the Symfony Form types reference to learn about all the available options, their usage and allowed values.

Tip

Symfony makes Doctrine relations nullable by default. Instead of adding the type_options: { required: true } option to all those fields, it's simpler to add @ORM\JoinColumn(nullable=false) to the property that defines the relation in the entity class.

Formatting Dates and Numbers

Customizing Date and Time Properties

Unlike the list, search and show views, there are no configuration options to define the date/time format for edit and new form fields. You must use instead the options defined by Symfony's DateTimeType, DateType and TimeType types.

For example, to display your dates as a single <input> text element, define the widget form field option (commonly used together with format):

1
2
3
4
5
6
7
8
# config/packages/easy_admin.yaml
easy_admin:
    entities:
        Event:
            edit:
                fields:
                    - { property: 'startsAt', type_options: { widget: 'single_text' } }
                    # ...

Customizing Numeric Properties

Similarly, there are no configuration options to define the formatting of the numeric values for the edit and new views. You must use instead the options defined by Symfony's NumberType, IntegerType, MoneyType and PercentType types.

For example, to display a numeric property that stores prices, you can define the currency option of the MoneyType form type:

1
2
3
4
5
6
7
8
# config/packages/easy_admin.yaml
easy_admin:
    entities:
        Product:
            edit:
                fields:
                    - { property: 'price', type: 'money', type_options: { currency: 'EUR' } }
                    # ...

Custom Doctrine Types

When your application defines custom Doctrine DBAL types, you must also define a custom form type for them before using them as form fields. Imagine that your application defines a UTCDateTime type to convert the timezone of datetime values to UTC before saving them in the database.

If you add that type in a property as follows, you'll get an error message saying that the utcdatetime type couldn't be loaded:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
# config/packages/easy_admin.yaml
easy_admin:
    entities:
        Customer:
            class: App\Entity\Customer
            form:
                fields:
                    - { property: 'createdAt', type: 'utcdatetime' }
                    # ...
    # ...

This problem is solved defining a custom utcdatetime Form Type. Read the How to Create a Custom Form Field Type article to learn how to define custom form types.

EasyAdmin Form Types

In addition to the Symfony Form types, fields can use any of the following types defined by EasyAdmin.

Autocomplete

It's similar to Symfony's Entity type, but the values are loaded on demand via Ajax requests based on the user's input. This type is useful to improve the backend performance when a field is related to an entity with lots of database records:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
# config/packages/easy_admin.yaml
easy_admin:
    entities:
        Product:
            class: App\Entity\Product
            form:
                fields:
                    - { property: 'category', type: 'easyadmin_autocomplete' }
                    # ...
    # ...

The easyadmin_autocomplete type configures the class of the related entity automatically. If you prefer to define it explicitly, do it in the type options:

1
2
# ...
- { property: 'category', type: 'easyadmin_autocomplete', type_options: { class: 'App\Entity\Category' } }

When the user types in an autocomplete field, EasyAdmin performs a fuzzy search on all the properties of the related entity. This is the same behavior applied when using the backend search form.

The autocomplete action returns to the browser a JSON array of { id: '...', text: '...' } tuples. The id is used as the form field value and the text is the value displayed to the user.

By default, the entity's primary key is used for the id property and the (string) $entity conversion is used for the text property. Therefore, you must define the __toString() method in all the entities used in autocomplete form fields.

If the number of autocomplete suggestions is large, they are paginated to display a maximum of 10 results. Define the show.max_results option to change this value (globally or per entity):

1
2
3
4
5
6
7
8
9
# config/packages/easy_admin.yaml
easy_admin:
    show:
        max_results: 20
    entities:
        Category:
            show:
                max_results: 5
    # ...

Advanced Form Design

Selecting the Form Theme

By default, forms are displayed using a proprietary form theme compatible with the Bootstrap 4 CSS framework.

Default form style

The form style can be changed with the form_theme design option:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
# config/packages/easy_admin.yaml
easy_admin:
    design:
        # ...

        # this is the default form theme used by backends
        form_theme: '@EasyAdmin/form/bootstrap_4.html.twig'

        # you can use your own form theme
        form_theme: '@App/form/custom_layout.html.twig'

        # you can also define an array of form themes to use all of them
        form_theme:
            - 'admin/form/custom_layout.html.twig'
            - 'form_div_layout.html.twig'
            - '@EasyAdmin/form/bootstrap_4.html.twig'

Customizing the Form Fields

Unlike the properties displayed on the list, search and show views, you can't easily override the template fragment used to render each form field. Instead, EasyAdmin forms follow the same mechanism defined by Symfony to customize individual form fields.

Imagine a form field where you want to include a <a> element that links to additional information. If the field is called title and belongs to a Product entity, the configuration would look like this:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
# config/packages/easy_admin.yaml
easy_admin:
    # ...
    entities:
        Product:
            class: App\Entity\Product
            form:
                fields:
                    - { property: title, type_options: { block_name: 'custom_title' } }
                    # ...

The next step is to define the template fragment used by that field, which requires to know the form fragment naming rules defined by Symfony:

1
2
3
4
5
{# templates/admin/form.html.twig #}
{% block _product_custom_title_widget %}
    {# ... #}
    <a href="...">More information</a>
{% endblock %}

Finally, add this custom theme to the list of themes used to render backend forms:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
# config/packages/easy_admin.yaml
easy_admin:
    # ...
    design:
        form_theme:
            - '@EasyAdmin/form/bootstrap_4.html.twig'
            # the following Twig template can be located anywhere in the application.
            # it can also be added to the twig.form_themes option to use it in the
            # entire application, not only the backend
            - 'admin/form.html.twig'

Customizing the Form Layout

The default form layout is pretty basic: fields are displayed in the same order they were defined and they span the full browser window width. However, forms can also include special design elements (tabs, groups, sections) to create more advanced layouts.

Form Sections

This design element helps you divide a long form into different sections using a subtle line. They are defined with elements of type section:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
# config/packages/easy_admin.yaml
easy_admin:
    # ...
    entities:
        Customer:
            class: App\Entity\Customer
            form:
                fields:
                    - id
                    - { type: 'section', label: 'User Details' }
                    - name
                    - surname
                    - { type: 'section', label: 'Contact information', icon: 'phone',
                        help: 'Phone number is preferred' }
                    - email
                    - phoneNumber

The configurable options of this element are:

  • label (optional, string), leave it empty if you only want to display a separator line.
  • icon (optional, string), the name of the FontAwesome icon without the fa- prefix (e.g. don't use fa fa-user or fa-user but user).
  • css_class (optional, string), you can apply multiple classes separating them with white spaces.
  • help (optional, string), text displayed to describe the form section or display helpful messages. It can include HTML elements.

A form that includes sections is still displayed as a single form that spans the entire available width. Multi-column forms are created with "groups" as explained below.

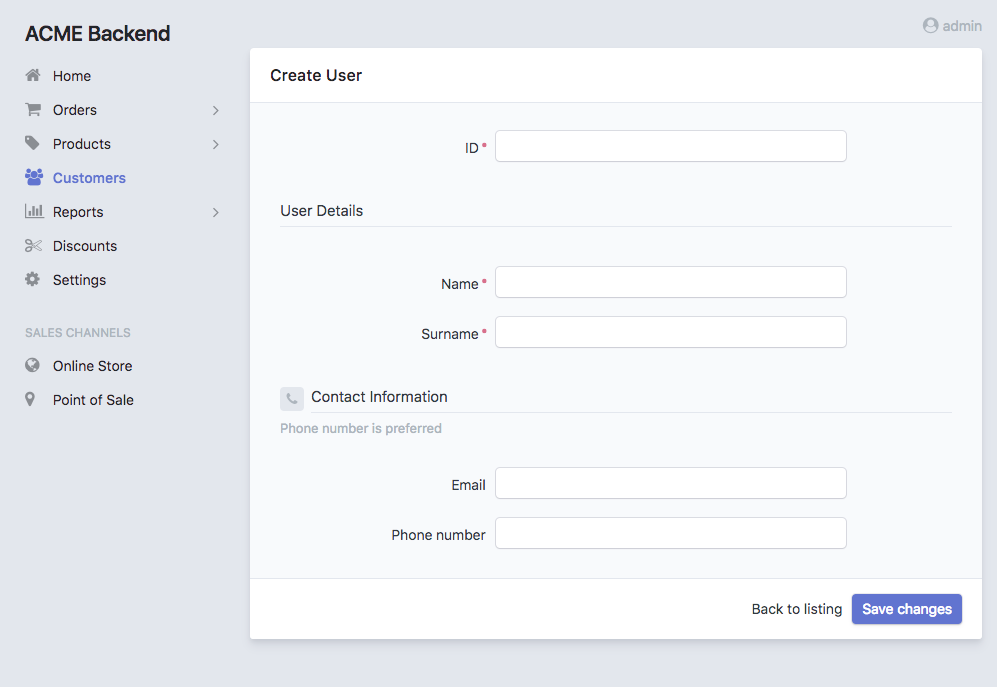

A form using sections to separate its fields

Form Groups

This element groups one or more fields using <fieldset> elements and displays them separately from the rest of the form fields. It's useful to create multi-column forms and to create very advanced layouts. They are defined with elements of type group:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
# config/packages/easy_admin.yaml
easy_admin:
    entities:
        Customer:
            class: App\Entity\Customer
            form:
                fields:
                    - { type: 'group', columns: 4, label: 'Basic information' }
                    - id
                    - name
                    - surname
                    - { type: 'group', label: 'Contact information', icon: 'phone', columns: 6 }
                    - email
                    - phoneNumber

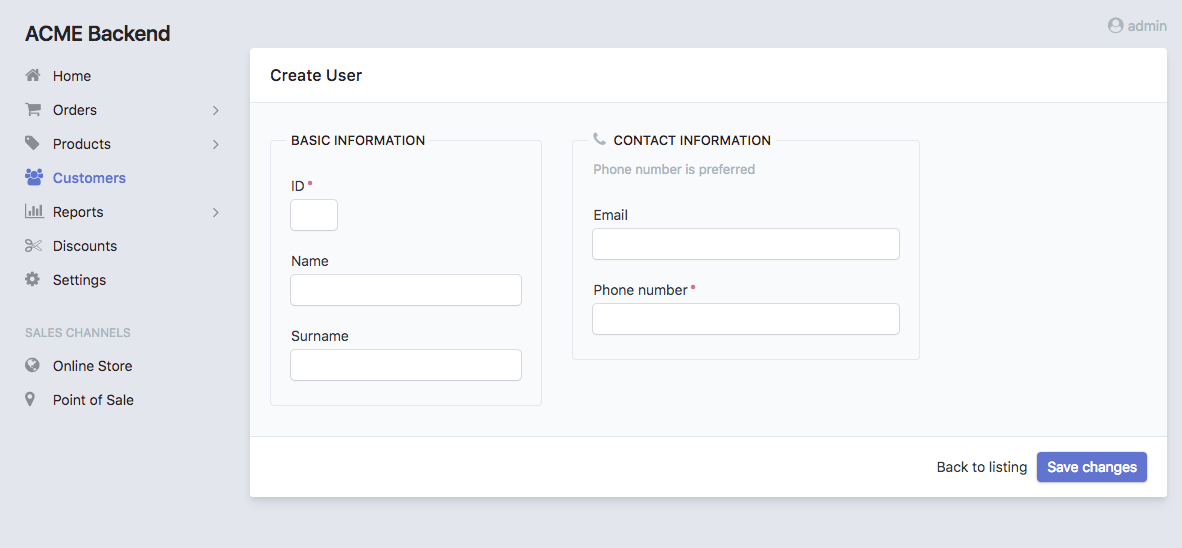

A form using groups to separate its fields

The configurable options of this element are:

  • label (optional, string), leave it empty if you only want to display a the <fieldset> without the <legend> element.
  • icon (optional, string), the name of the FontAwesome icon without the fa- prefix (e.g. don't use fa fa-user or fa-user but user).
  • css_class (optional, string), you can apply multiple classes separating them with white spaces.
  • columns (optional, integer), the number of columns that spans this form group. The default value is 12, which spans the whole row. Ideal to display complex forms as multi-column forms.
  • help (optional, string), text displayed to describe the form group or display helpful messages. It can include HTML elements.

Tip

Because of the way CSS works, when creating multi-column forms is common to have ugly gaps between some rows and columns. Use the .w-100 CSS class provided by Bootstrap 4 to force the form group to be displayed in a new row:

1
2
# ...
- { type: 'group', css_class: 'w-100 ...' }

This solves most of the issues, but sometimes you might be forced to also reorder the form group positions.

Form Tabs

This element groups one or more fields and displays them in a separate tab. You can combine it with the other elements (tabs can contain groups, but no the other way around) to create clean interfaces when forms contains lots of fields. They are defined with elements of type tab:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
# config/packages/easy_admin.yaml
easy_admin:
    entities:
        User:
            class: App\Entity\User
            form:
                fields:
                    - { type: 'tab' , label: 'Basic Information' }
                    - id
                    - name
                    - surname
                    - { type: 'tab', label: 'Contact Information', icon: 'phone' }
                    - email
                    - phone

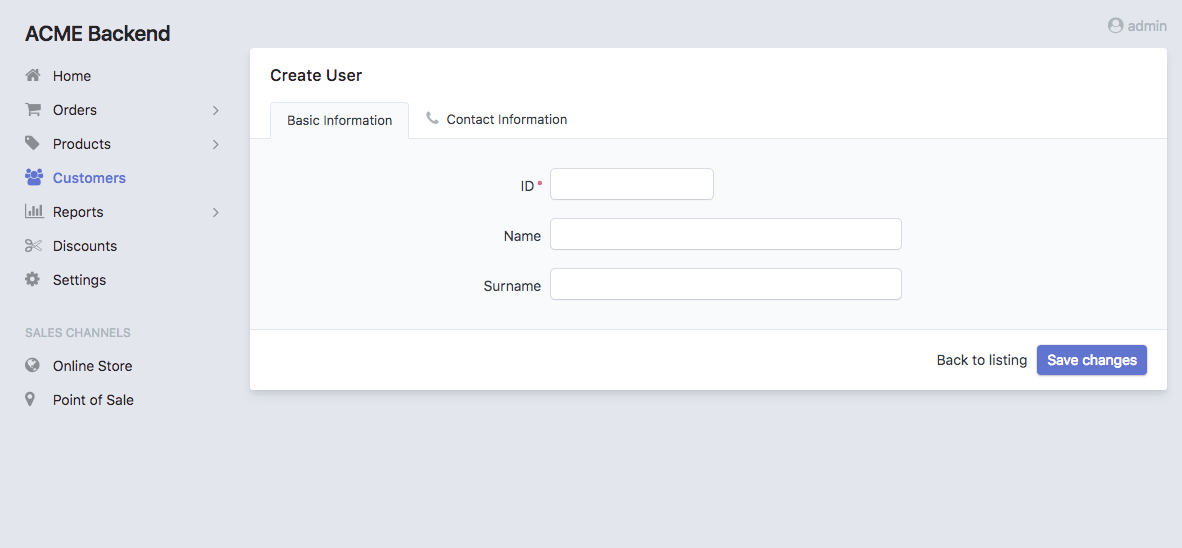

A form using tabs to separate its fields

The configurable options of this element are:

  • label (mandatory, string), displayed as the clickable name of the tab.
  • icon (optional, string), the name of the FontAwesome icon without the fa- prefix (e.g. don't use fa fa-user or fa-user but user).
  • css_class (optional, string), you can apply multiple classes separating them with white spaces.
  • help (optional, string), text displayed to describe the form tab or display helpful messages. It can include HTML elements.

Design elements can be combined to display sections inside groups and create advanced layouts:

A complex form layout combining sections and groups

Advanced Design Configuration

The previous sections explain how to customize the design of the forms and their fields using Symfony's Form component features. EasyAdmin also lets you customize the entire edit and new views, similar to how the other views (list, show, etc.) are customized.

EasyAdmin defines several Twig templates to create its interface. These are the templates related to edit and new views:

  • @EasyAdmin/default/layout.html.twig, the common layout that decorates the rest of the main templates;
  • @EasyAdmin/default/new, renders the page where new entities are created;
  • @EasyAdmin/default/edit, renders the page where entity contents are edited;

Note

The special form view doesn't have a template associated. The template configured for form will be used for both edit and new unless they override that template in their own configuration.

Depending on your needs, there are several customization options:

  1. Override the default EasyAdmin templates using Symfony's overriding mechanism. Useful to add or change minor things in the default interface.
  2. Use your own templates to display the edit/new views and all their elements. Useful if you want to customize the interface entirely.

Overriding the Default Templates Using Symfony's Mechanism

Symfony allows to override any part of third-party bundles. To override one of the default EasyAdmin templates, create a new template inside templates/bundles/EasyAdminBundle/default/ with the same path as the template to override. Example:

1
2
3
4
5
6
7
8
your-project/
├─ ...
└─ templates/
   └─ bundles/
      └─ EasyAdminBundle/
         └─ default/
            ├─ new.html.twig
            └─ edit.html.twig

Tip

Add an empty {{ dump() }} call in your custom templates to know which variables are passed to them by EasyAdmin.

Instead of creating the new templates from scratch, you can extend from the original templates and change only the parts you want to override. However, you must use a special syntax inside extends to avoid an infinite loop:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
{# templates/bundles/EasyAdminBundle/default/layout.html.twig #}

{# DON'T DO THIS: it will cause an infinite loop #}
{% extends '@EasyAdmin/default/layout.html.twig' %}

{# DO THIS: the '!' symbol tells Symfony to extend from the original template #}
{% extends '@!EasyAdmin/default/layout.html.twig' %}

{% block sidebar %}
    {# ... #}
{% endblock %}

Using your Own Templates to Display the list/search/show Views

Add the templates option (globally or only to some entities) to define the path of the Twig template used to render each part of the interface:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
# config/packages/easy_admin.yaml
easy_admin:
    design:
        # these custom templates are applied to all entities
        templates:
            edit: 'admin/custom_edit_form.html.twig'
    entities:
        Customer:
            # ...
            # these custom templates are only applied to this entity and
            # they override any global template defined in 'design.templates'
            templates:
                edit: 'admin/customer/edit.html.twig'
                new: 'admin/customizations/customer_new.html.twig'

The name of the config option matches the name of the template files inside src/Resources/views/ (e.g. layout, edit, new, etc.) The value of the options can be any valid Twig template path.

Tip

Add an empty {{ dump() }} call in your custom templates to know which variables are passed to them by EasyAdmin.

Instead of creating the new templates from scratch, you can extend from the original templates and change only the parts you want to override. Suppose you only want to change the way titles are displayed on the new view. To do so, create the following new.html.twig template extending from the default one and override only the content_title Twig block:

1
2
3
4
5
6
{# templates/admin/new.html.twig #}
{% extends '@EasyAdmin/default/new.html.twig' %}

{% block content_title %}
    {# ... customize the content title ... #}
{% endblock %}

Next chapter: Chapter 7. Actions Configuration

This work, including the code samples, is licensed under a Creative Commons BY-SA 3.0 license.
