How to Dump Workflows

To help you debug your workflows, you can generate a visual representation of them as SVG or PNG images. First, install any of these free and open source applications needed to generate the images:

  • Graphviz, provides the dot command;
  • Mermaid CLI, provides the mmdc command;
  • PlantUML, provides the plantuml.jar file (which requires Java).

New in version 5.3: The mermaid dump format was introduced in Symfony 5.3.

If you are defining the workflow inside a Symfony application, run this command to dump it as an image:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
# using Graphviz's 'dot' and SVG images
$ php bin/console workflow:dump workflow-name | dot -Tsvg -o graph.svg

# using Graphviz's 'dot' and PNG images
$ php bin/console workflow:dump workflow-name | dot -Tpng -o graph.png

# using PlantUML's 'plantuml.jar'
$ php bin/console workflow:dump workflow_name --dump-format=puml | java -jar plantuml.jar -p  > graph.png

# highlight 'place1' and 'place2' in the dumped workflow
$ php bin/console workflow:dump workflow-name place1 place2 | dot -Tsvg -o graph.svg

# using Mermaid.js CLI
$ php bin/console workflow:dump workflow_name --dump-format=mermaid | mmdc -o graph.svg

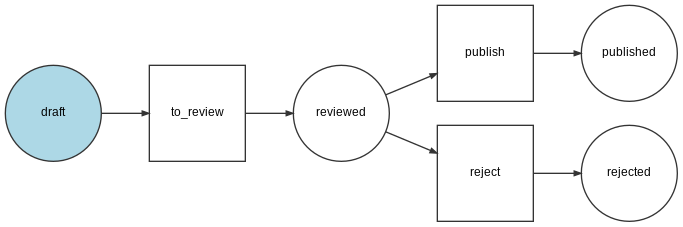

The DOT image will look like this:

../_images/blogpost.png

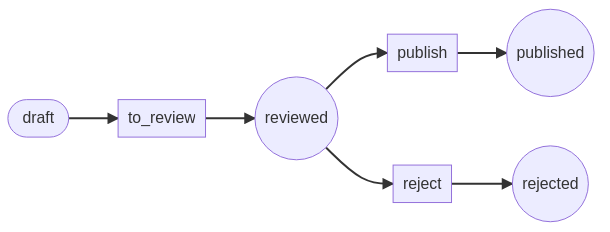

The Mermaid image will look like this:

../_images/blogpost_mermaid.png

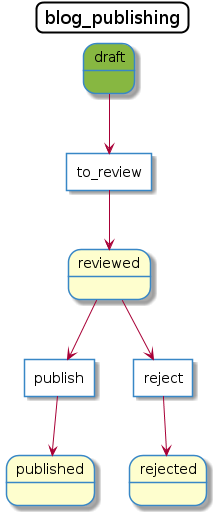

The PlantUML image will look like this:

../_images/blogpost_puml.png

If you are creating workflows outside of a Symfony application, use the GraphvizDumper or StateMachineGraphvizDumper class to create the DOT files and PlantUmlDumper to create the PlantUML files:

// Add this code to a PHP script; for example: dump-graph.php
$dumper = new GraphvizDumper();
echo $dumper->dump($definition);

# if you prefer PlantUML, use this code:
# $dumper = new PlantUmlDumper();
# echo $dumper->dump($definition);
1
2
3
# replace 'dump-graph.php' by the name of your PHP script
$ php dump-graph.php | dot -Tsvg -o graph.svg
$ php dump-graph.php | java -jar plantuml.jar -p  > graph.png

Styling

You can use metadata with the following keys to style the workflow:

  • for places:
    • bg_color: a color;
    • description: a string that describes the state.
  • for transitions:
    • label: a string that replaces the name of the transition;
    • color: a color;
    • arrow_color: a color.

Strings can include \n characters to display the contents in multiple lines. Colors can be defined as:

Note

The Mermaid dumper does not support coloring the arrow heads with arrow_color as there is no support in Mermaid for doing so.

Below is the configuration for the pull request state machine with styling added.

  • YAML
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    # config/packages/workflow.yaml
    framework:
        workflows:
            pull_request:
                type: 'state_machine'
                marking_store:
                    type: 'method'
                    property: 'currentPlace'
                supports:
                    - App\Entity\PullRequest
                initial_marking: start
                places:
                    start: ~
                    coding: ~
                    test: ~
                    review:
                        metadata:
                            description: Human review
                    merged: ~
                    closed:
                        metadata:
                            bg_color: DeepSkyBlue
                transitions:
                    submit:
                        from: start
                        to: test
                    update:
                        from: [coding, test, review]
                        to: test
                        metadata:
                            arrow_color: Turquoise
                    wait_for_review:
                        from: test
                        to: review
                        metadata:
                            color: Orange
                    request_change:
                        from: review
                        to: coding
                    accept:
                        from: review
                        to: merged
                        metadata:
                            label: Accept PR
                    reject:
                        from: review
                        to: closed
                    reopen:
                        from: closed
                        to: review

  • XML
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    58
    59
    60
    61
    62
    63
    64
    65
    66
    67
    68
    69
    70
    71
    72
    73
    74
    75
    76
    77
    78
    79
    80
    81
    82
    83
    84
    85
    86
    87
    88
    89
    90
    91
    92
    93
    94
    95
    <!-- config/packages/workflow.xml -->
    <?xml version="1.0" encoding="UTF-8" ?>
    <container xmlns="http://symfony.com/schema/dic/services"
        xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
        xmlns:framework="http://symfony.com/schema/dic/symfony"
        xsi:schemaLocation="http://symfony.com/schema/dic/services https://symfony.com/schema/dic/services/services-1.0.xsd
            http://symfony.com/schema/dic/symfony https://symfony.com/schema/dic/symfony/symfony-1.0.xsd"
    >

        <framework:config>
            <framework:workflow name="pull_request" type="state_machine">
                <framework:marking-store>
                    <framework:type>method</framework:type>
                    <framework:property>currentPlace</framework:property>
                </framework:marking-store>

                <framework:support>App\Entity\PullRequest</framework:support>

                <framework:initial_marking>start</framework:initial_marking>

                <framework:place>start</framework:place>
                <framework:place>coding</framework:place>
                <framework:place>test</framework:place>
                <framework:place name="review">
                    <framework:metadata>
                        <framework:description>Human review</framework:description>
                    </framework:metadata>
                </framework:place>
                <framework:place>merged</framework:place>
                <framework:place name="closed">
                    <framework:metadata>
                        <framework:bg_color>DeepSkyBlue</framework:bg_color>
                    </framework:metadata>
                </framework:place>

                <framework:transition name="submit">
                    <framework:from>start</framework:from>

                    <framework:to>test</framework:to>
                </framework:transition>

                <framework:transition name="update">
                    <framework:from>coding</framework:from>
                    <framework:from>test</framework:from>
                    <framework:from>review</framework:from>

                    <framework:to>test</framework:to>

                    <framework:metadata>
                        <framework:arrow_color>Turquoise</framework:arrow_color>
                    </framework:metadata>
                </framework:transition>

                <framework:transition name="wait_for_review">
                    <framework:from>test</framework:from>

                    <framework:to>review</framework:to>

                    <framework:metadata>
                        <framework:color>Orange</framework:color>
                    </framework:metadata>
                </framework:transition>

                <framework:transition name="request_change">
                    <framework:from>review</framework:from>

                    <framework:to>coding</framework:to>
                </framework:transition>

                <framework:transition name="accept">
                    <framework:from>review</framework:from>

                    <framework:to>merged</framework:to>

                    <framework:metadata>
                        <framework:label>Accept PR</framework:label>
                    </framework:metadata>
                </framework:transition>

                <framework:transition name="reject">
                    <framework:from>review</framework:from>

                    <framework:to>closed</framework:to>
                </framework:transition>

                <framework:transition name="reopen">
                    <framework:from>closed</framework:from>

                    <framework:to>review</framework:to>
                </framework:transition>

            </framework:workflow>

        </framework:config>
    </container>

  • PHP
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    58
    59
    60
    61
    62
    63
    64
    65
    // config/packages/workflow.php
    use Symfony\Config\FrameworkConfig;

    return static function (FrameworkConfig $framework) {
        // ...
        $pullRequest = $framework->workflows()->workflows('pull_request');

        $pullRequest
            ->type('state_machine')
            ->supports(['App\Entity\PullRequest'])
            ->initialMarking(['start']);

        $pullRequest->markingStore()
            ->type('method')
            ->property('currentPlace');

        $pullRequest->place()->name('start');
        $pullRequest->place()->name('coding');
        $pullRequest->place()->name('test');
        $pullRequest->place()
            ->name('review')
            ->metadata(['description' => 'Human review']);
        $pullRequest->place()->name('merged');
        $pullRequest->place()
            ->name('closed')
            ->metadata(['bg_color' => 'DeepSkyBlue',]);

        $pullRequest->transition()
            ->name('submit')
                ->from(['start'])
                ->to(['test']);

        $pullRequest->transition()
            ->name('update')
                ->from(['coding', 'test', 'review'])
                ->to(['test'])
                ->metadata(['arrow_color' => 'Turquoise']);

        $pullRequest->transition()
            ->name('wait_for_review')
                ->from(['test'])
                ->to(['review'])
                ->metadata(['color' => 'Orange']);

        $pullRequest->transition()
            ->name('request_change')
                ->from(['review'])
                ->to(['coding']);

        $pullRequest->transition()
            ->name('accept')
                ->from(['review'])
                ->to(['merged'])
                ->metadata(['label' => 'Accept PR']);

        $pullRequest->transition()
            ->name('reject')
                ->from(['review'])
                ->to(['closed']);

        $pullRequest->transition()
            ->name('accept')
                ->from(['closed'])
                ->to(['review']);
    };

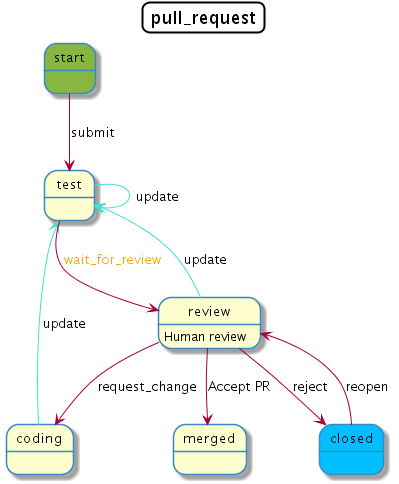

The PlantUML image will look like this:

../_images/pull_request_puml_styled.png
