Databases and Doctrine

One of the most common and challenging tasks for any application involves persisting and reading information to and from a database. Fortunately, Symfony comes integrated with Doctrine, a library whose sole goal is to give you powerful tools to make this easy. In this chapter, you'll learn the basic philosophy behind Doctrine and see how easy working with a database can be.

Note

Doctrine is totally decoupled from Symfony and using it is optional. This chapter is all about the Doctrine ORM, which aims to let you map objects to a relational database (such as MySQL, PostgreSQL or Microsoft SQL). If you prefer to use raw database queries, this is easy, and explained in the "How to use Doctrine's DBAL Layer" cookbook entry.

You can also persist data to MongoDB using Doctrine ODM library. For more information, read the "DoctrineMongoDBBundle" documentation.

A Simple Example: A Product

The easiest way to understand how Doctrine works is to see it in action. In this section, you'll configure your database, create a Product object, persist it to the database and fetch it back out.

If you want to follow along with the example in this chapter, create an AcmeStoreBundle via:

1
$ php app/console generate:bundle --namespace=Acme/StoreBundle

Configuring the Database

Before you really begin, you'll need to configure your database connection information. By convention, this information is usually configured in an app/config/parameters.yml file:

1
2
3
4
5
6
7
8
9
# app/config/parameters.yml
parameters:
    database_driver:    pdo_mysql
    database_host:      localhost
    database_name:      test_project
    database_user:      root
    database_password:  password

# ...

Note

Defining the configuration via parameters.yml is just a convention. The parameters defined in that file are referenced by the main configuration file when setting up Doctrine:

  • YAML
    1
    2
    3
    4
    5
    6
    7
    8
    # app/config/config.yml
    doctrine:
        dbal:
            driver:   "%database_driver%"
            host:     "%database_host%"
            dbname:   "%database_name%"
            user:     "%database_user%"
            password: "%database_password%"

  • XML
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    <!-- app/config/config.xml -->
    <doctrine:config>
        <doctrine:dbal
            driver="%database_driver%"
            host="%database_host%"
            dbname="%database_name%"
            user="%database_user%"
            password="%database_password%"
        >
    </doctrine:config>

  • PHP
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    // app/config/config.php
    $configuration->loadFromExtension('doctrine', array(
        'dbal' => array(
            'driver'   => '%database_driver%',
            'host'     => '%database_host%',
            'dbname'   => '%database_name%',
            'user'     => '%database_user%',
            'password' => '%database_password%',
        ),
    ));


By separating the database information into a separate file, you can easily keep different versions of the file on each server. You can also easily store database configuration (or any sensitive information) outside of your project, like inside your Apache configuration, for example. For more information, see How to Set External Parameters in the Service Container.

Now that Doctrine knows about your database, you can have it create the database for you:

1
$ php app/console doctrine:database:create

One mistake even seasoned developers make when starting a Symfony2 project is forgetting to setup default charset and collation on their database, ending up with latin type collations, which are default for most databases. They might even remember to do it the very first time, but forget that it's all gone after running a relatively common command during development:

1
2
$ php app/console doctrine:database:drop --force
$ php app/console doctrine:database:create

There's no way to configure these defaults inside Doctrine, as it tries to be as agnostic as possible in terms of environment configuration. One way to solve this problem is to configure server-level defaults.

Setting UTF8 defaults for MySQL is as simple as adding a few lines to your configuration file (typically my.cnf):

1
2
3
[mysqld]
collation-server = utf8_general_ci
character-set-server = utf8

Note

If you want to use SQLite as your database, you need to set the path where your database file should be stored:

  • YAML
    1
    2
    3
    4
    5
    6
    # app/config/config.yml
    doctrine:
        dbal:
            driver: pdo_sqlite
            path: "%kernel.root_dir%/sqlite.db"
            charset: UTF8

  • XML
    1
    2
    3
    4
    5
    6
    7
    8
    <!-- app/config/config.xml -->
    <doctrine:config
        driver="pdo_sqlite"
        path="%kernel.root_dir%/sqlite.db"
        charset="UTF-8"
    >
        <!-- ... -->
    </doctrine:config>

  • PHP
    1
    2
    3
    4
    5
    6
    7
    8
    // app/config/config.php
    $container->loadFromExtension('doctrine', array(
        'dbal' => array(
            'driver'  => 'pdo_sqlite',
            'path'    => '%kernel.root_dir%/sqlite.db',
            'charset' => 'UTF-8',
        ),
    ));


Creating an Entity Class

Suppose you're building an application where products need to be displayed. Without even thinking about Doctrine or databases, you already know that you need a Product object to represent those products. Create this class inside the Entity directory of your AcmeStoreBundle:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
// src/Acme/StoreBundle/Entity/Product.php
namespace Acme\StoreBundle\Entity;

class Product
{
    protected $name;

    protected $price;

    protected $description;
}

The class - often called an "entity", meaning a basic class that holds data - is simple and helps fulfill the business requirement of needing products in your application. This class can't be persisted to a database yet - it's just a simple PHP class.

Tip

Once you learn the concepts behind Doctrine, you can have Doctrine create simple entity classes for you:

1
$ php app/console doctrine:generate:entity --entity="AcmeStoreBundle:Product" --fields="name:string(255) price:float description:text"

Add Mapping Information

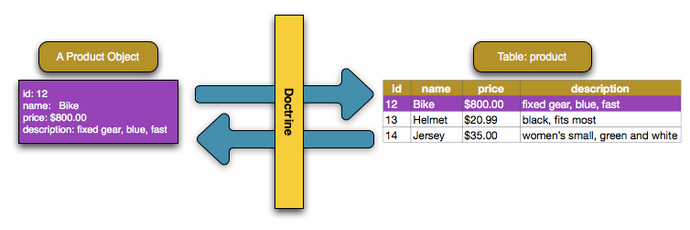

Doctrine allows you to work with databases in a much more interesting way than just fetching rows of a column-based table into an array. Instead, Doctrine allows you to persist entire objects to the database and fetch entire objects out of the database. This works by mapping a PHP class to a database table, and the properties of that PHP class to columns on the table:

../_images/doctrine_image_1.png

For Doctrine to be able to do this, you just have to create "metadata", or configuration that tells Doctrine exactly how the Product class and its properties should be mapped to the database. This metadata can be specified in a number of different formats including YAML, XML or directly inside the Product class via annotations:

  • Annotations
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    // src/Acme/StoreBundle/Entity/Product.php
    namespace Acme\StoreBundle\Entity;

    use Doctrine\ORM\Mapping as ORM;

    /**
     * @ORM\Entity
     * @ORM\Table(name="product")
     */
    class Product
    {
        /**
         * @ORM\Id
         * @ORM\Column(type="integer")
         * @ORM\GeneratedValue(strategy="AUTO")
         */
        protected $id;

        /**
         * @ORM\Column(type="string", length=100)
         */
        protected $name;

        /**
         * @ORM\Column(type="decimal", scale=2)
         */
        protected $price;

        /**
         * @ORM\Column(type="text")
         */
        protected $description;
    }

  • YAML
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    # src/Acme/StoreBundle/Resources/config/doctrine/Product.orm.yml
    Acme\StoreBundle\Entity\Product:
        type: entity
        table: product
        id:
            id:
                type: integer
                generator: { strategy: AUTO }
        fields:
            name:
                type: string
                length: 100
            price:
                type: decimal
                scale: 2
            description:
                type: text

  • XML
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    <!-- src/Acme/StoreBundle/Resources/config/doctrine/Product.orm.xml -->
    <doctrine-mapping xmlns="http://doctrine-project.org/schemas/orm/doctrine-mapping"
          xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
          xsi:schemaLocation="http://doctrine-project.org/schemas/orm/doctrine-mapping
                        http://doctrine-project.org/schemas/orm/doctrine-mapping.xsd">

        <entity name="Acme\StoreBundle\Entity\Product" table="product">
            <id name="id" type="integer" column="id">
                <generator strategy="AUTO" />
            </id>
            <field name="name" column="name" type="string" length="100" />
            <field name="price" column="price" type="decimal" scale="2" />
            <field name="description" column="description" type="text" />
        </entity>
    </doctrine-mapping>


Note

A bundle can accept only one metadata definition format. For example, it's not possible to mix YAML metadata definitions with annotated PHP entity class definitions.

Tip

The table name is optional and if omitted, will be determined automatically based on the name of the entity class.

Doctrine allows you to choose from a wide variety of different field types, each with their own options. For information on the available field types, see the Doctrine Field Types Reference section.

See also

You can also check out Doctrine's Basic Mapping Documentation for all details about mapping information. If you use annotations, you'll need to prepend all annotations with ORM\ (e.g. ORM\Column(..)), which is not shown in Doctrine's documentation. You'll also need to include the use Doctrine\ORM\Mapping as ORM; statement, which imports the ORM annotations prefix.

Caution

Be careful that your class name and properties aren't mapped to a protected SQL keyword (such as group or user). For example, if your entity class name is Group, then, by default, your table name will be group, which will cause an SQL error in some engines. See Doctrine's Reserved SQL keywords documentation on how to properly escape these names. Alternatively, if you're free to choose your database schema, simply map to a different table name or column name. See Doctrine's Persistent classes and Property Mapping documentation.

Note

When using another library or program (ie. Doxygen) that uses annotations, you should place the @IgnoreAnnotation annotation on the class to indicate which annotations Symfony should ignore.

For example, to prevent the @fn annotation from throwing an exception, add the following:

1
2
3
4
5
/**
 * @IgnoreAnnotation("fn")
 */
class Product
// ...

Generating Getters and Setters

Even though Doctrine now knows how to persist a Product object to the database, the class itself isn't really useful yet. Since Product is just a regular PHP class, you need to create getter and setter methods (e.g. getName(), setName()) in order to access its properties (since the properties are protected). Fortunately, Doctrine can do this for you by running:

1
$ php app/console doctrine:generate:entities Acme/StoreBundle/Entity/Product

This command makes sure that all of the getters and setters are generated for the Product class. This is a safe command - you can run it over and over again: it only generates getters and setters that don't exist (i.e. it doesn't replace your existing methods).

Caution

Keep in mind that Doctrine's entity generator produces simple getters/setters. You should check generated entities and adjust getter/setter logic to your own needs.

With the doctrine:generate:entities command you can:

  • generate getters and setters;

  • generate repository classes configured with the

    @ORM\Entity(repositoryClass="...") annotation;

  • generate the appropriate constructor for 1:n and n:m relations.

The doctrine:generate:entities command saves a backup of the original Product.php named Product.php~. In some cases, the presence of this file can cause a "Cannot redeclare class" error. It can be safely removed. You can also use the --no-backup option to prevent generating these backup files.

Note that you don't need to use this command. Doctrine doesn't rely on code generation. Like with normal PHP classes, you just need to make sure that your protected/private properties have getter and setter methods. Since this is a common thing to do when using Doctrine, this command was created.

You can also generate all known entities (i.e. any PHP class with Doctrine mapping information) of a bundle or an entire namespace:

1
2
$ php app/console doctrine:generate:entities AcmeStoreBundle
$ php app/console doctrine:generate:entities Acme

Note

Doctrine doesn't care whether your properties are protected or private, or whether or not you have a getter or setter function for a property. The getters and setters are generated here only because you'll need them to interact with your PHP object.

Creating the Database Tables/Schema

You now have a usable Product class with mapping information so that Doctrine knows exactly how to persist it. Of course, you don't yet have the corresponding product table in your database. Fortunately, Doctrine can automatically create all the database tables needed for every known entity in your application. To do this, run:

1
$ php app/console doctrine:schema:update --force

Tip

Actually, this command is incredibly powerful. It compares what your database should look like (based on the mapping information of your entities) with how it actually looks, and generates the SQL statements needed to update the database to where it should be. In other words, if you add a new property with mapping metadata to Product and run this task again, it will generate the "alter table" statement needed to add that new column to the existing product table.

An even better way to take advantage of this functionality is via migrations, which allow you to generate these SQL statements and store them in migration classes that can be run systematically on your production server in order to track and migrate your database schema safely and reliably.

Your database now has a fully-functional product table with columns that match the metadata you've specified.

Persisting Objects to the Database

Now that you have a mapped Product entity and corresponding product table, you're ready to persist data to the database. From inside a controller, this is pretty easy. Add the following method to the DefaultController of the bundle:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
// src/Acme/StoreBundle/Controller/DefaultController.php

// ...
use Acme\StoreBundle\Entity\Product;
use Symfony\Component\HttpFoundation\Response;

public function createAction()
{
    $product = new Product();
    $product->setName('A Foo Bar');
    $product->setPrice('19.99');
    $product->setDescription('Lorem ipsum dolor');

    $em = $this->getDoctrine()->getManager();
    $em->persist($product);
    $em->flush();

    return new Response('Created product id '.$product->getId());
}

Note

If you're following along with this example, you'll need to create a route that points to this action to see it work.

Take a look at the previous example in more detail:

  • lines 9-12 In this section, you instantiate and work with the $product object like any other, normal PHP object.
  • line 14 This line fetches Doctrine's entity manager object, which is responsible for handling the process of persisting and fetching objects to and from the database.
  • line 15 The persist() method tells Doctrine to "manage" the $product object. This does not actually cause a query to be made to the database (yet).
  • line 16 When the flush() method is called, Doctrine looks through all of the objects that it's managing to see if they need to be persisted to the database. In this example, the $product object has not been persisted yet, so the entity manager executes an INSERT query and a row is created in the product table.

Note

In fact, since Doctrine is aware of all your managed entities, when you call the flush() method, it calculates an overall changeset and executes the most efficient query/queries possible. For example, if you persist a total of 100 Product objects and then subsequently call flush(), Doctrine will create a single prepared statement and re-use it for each insert. This pattern is called Unit of Work, and it's used because it's fast and efficient.

When creating or updating objects, the workflow is always the same. In the next section, you'll see how Doctrine is smart enough to automatically issue an UPDATE query if the record already exists in the database.

Tip

Doctrine provides a library that allows you to programmatically load testing data into your project (i.e. "fixture data"). For information, see DoctrineFixturesBundle.

Fetching Objects from the Database

Fetching an object back out of the database is even easier. For example, suppose you've configured a route to display a specific Product based on its id value:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
public function showAction($id)
{
    $product = $this->getDoctrine()
        ->getRepository('AcmeStoreBundle:Product')
        ->find($id);

    if (!$product) {
        throw $this->createNotFoundException(
            'No product found for id '.$id
        );
    }

    // ... do something, like pass the $product object into a template
}

Tip

You can achieve the equivalent of this without writing any code by using the @ParamConverter shortcut. See the FrameworkExtraBundle documentation for more details.

When you query for a particular type of object, you always use what's known as its "repository". You can think of a repository as a PHP class whose only job is to help you fetch entities of a certain class. You can access the repository object for an entity class via:

1
2
$repository = $this->getDoctrine()
    ->getRepository('AcmeStoreBundle:Product');

Note

The AcmeStoreBundle:Product string is a shortcut you can use anywhere in Doctrine instead of the full class name of the entity (i.e. Acme\StoreBundle\Entity\Product). As long as your entity lives under the Entity namespace of your bundle, this will work.

Once you have your repository, you have access to all sorts of helpful methods:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
// query by the primary key (usually "id")
$product = $repository->find($id);

// dynamic method names to find based on a column value
$product = $repository->findOneById($id);
$product = $repository->findOneByName('foo');

// find *all* products
$products = $repository->findAll();

// find a group of products based on an arbitrary column value
$products = $repository->findByPrice(19.99);

Note

Of course, you can also issue complex queries, which you'll learn more about in the Querying for Objects section.

You can also take advantage of the useful findBy and findOneBy methods to easily fetch objects based on multiple conditions:

1
2
3
4
5
6
7
8
// query for one product matching be name and price
$product = $repository->findOneBy(array('name' => 'foo', 'price' => 19.99));

// query for all products matching the name, ordered by price
$products = $repository->findBy(
    array('name' => 'foo'),
    array('price' => 'ASC')
);

Tip

When you render any page, you can see how many queries were made in the bottom right corner of the web debug toolbar.

../_images/doctrine_web_debug_toolbar.png

If you click the icon, the profiler will open, showing you the exact queries that were made.

Updating an Object

Once you've fetched an object from Doctrine, updating it is easy. Suppose you have a route that maps a product id to an update action in a controller:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
public function updateAction($id)
{
    $em = $this->getDoctrine()->getManager();
    $product = $em->getRepository('AcmeStoreBundle:Product')->find($id);

    if (!$product) {
        throw $this->createNotFoundException(
            'No product found for id '.$id
        );
    }

    $product->setName('New product name!');
    $em->flush();

    return $this->redirect($this->generateUrl('homepage'));
}

Updating an object involves just three steps:

  1. fetching the object from Doctrine;
  2. modifying the object;
  3. calling flush() on the entity manager

Notice that calling $em->persist($product) isn't necessary. Recall that this method simply tells Doctrine to manage or "watch" the $product object. In this case, since you fetched the $product object from Doctrine, it's already managed.

Deleting an Object

Deleting an object is very similar, but requires a call to the remove() method of the entity manager:

1
2
$em->remove($product);
$em->flush();

As you might expect, the remove() method notifies Doctrine that you'd like to remove the given entity from the database. The actual DELETE query, however, isn't actually executed until the flush() method is called.

Querying for Objects

You've already seen how the repository object allows you to run basic queries without any work:

1
2
3
$repository->find($id);

$repository->findOneByName('Foo');

Of course, Doctrine also allows you to write more complex queries using the Doctrine Query Language (DQL). DQL is similar to SQL except that you should imagine that you're querying for one or more objects of an entity class (e.g. Product) instead of querying for rows on a table (e.g. product).

When querying in Doctrine, you have two options: writing pure Doctrine queries or using Doctrine's Query Builder.

Querying for Objects with DQL

Imagine that you want to query for products, but only return products that cost more than 19.99, ordered from cheapest to most expensive. From inside a controller, do the following:

1
2
3
4
5
6
$em = $this->getDoctrine()->getManager();
$query = $em->createQuery(
    'SELECT p FROM AcmeStoreBundle:Product p WHERE p.price > :price ORDER BY p.price ASC'
)->setParameter('price', '19.99');

$products = $query->getResult();

If you're comfortable with SQL, then DQL should feel very natural. The biggest difference is that you need to think in terms of "objects" instead of rows in a database. For this reason, you select from AcmeStoreBundle:Product and then alias it as p.

The getResult() method returns an array of results. If you're querying for just one object, you can use the getSingleResult() method instead:

1
$product = $query->getSingleResult();

Caution

The getSingleResult() method throws a Doctrine\ORM\NoResultException exception if no results are returned and a Doctrine\ORM\NonUniqueResultException if more than one result is returned. If you use this method, you may need to wrap it in a try-catch block and ensure that only one result is returned (if you're querying on something that could feasibly return more than one result):

1
2
3
4
5
6
7
8
9
$query = $em->createQuery('SELECT ...')
    ->setMaxResults(1);

try {
    $product = $query->getSingleResult();
} catch (\Doctrine\Orm\NoResultException $e) {
    $product = null;
}
// ...

The DQL syntax is incredibly powerful, allowing you to easily join between entities (the topic of relations will be covered later), group, etc. For more information, see the official Doctrine Doctrine Query Language documentation.

Take note of the setParameter() method. When working with Doctrine, it's always a good idea to set any external values as "placeholders", which was done in the above query:

1
... WHERE p.price > :price ...

You can then set the value of the price placeholder by calling the setParameter() method:

1
->setParameter('price', '19.99')

Using parameters instead of placing values directly in the query string is done to prevent SQL injection attacks and should always be done. If you're using multiple parameters, you can set their values at once using the setParameters() method:

1
2
3
4
->setParameters(array(
    'price' => '19.99',
    'name'  => 'Foo',
))

Using Doctrine's Query Builder

Instead of writing the queries directly, you can alternatively use Doctrine's QueryBuilder to do the same job using a nice, object-oriented interface. If you use an IDE, you can also take advantage of auto-completion as you type the method names. From inside a controller:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
$repository = $this->getDoctrine()
    ->getRepository('AcmeStoreBundle:Product');

$query = $repository->createQueryBuilder('p')
    ->where('p.price > :price')
    ->setParameter('price', '19.99')
    ->orderBy('p.price', 'ASC')
    ->getQuery();

$products = $query->getResult();

The QueryBuilder object contains every method necessary to build your query. By calling the getQuery() method, the query builder returns a normal Query object, which is the same object you built directly in the previous section.

For more information on Doctrine's Query Builder, consult Doctrine's Query Builder documentation.

Custom Repository Classes

In the previous sections, you began constructing and using more complex queries from inside a controller. In order to isolate, test and reuse these queries, it's a good idea to create a custom repository class for your entity and add methods with your query logic there.

To do this, add the name of the repository class to your mapping definition.

  • Annotations
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    // src/Acme/StoreBundle/Entity/Product.php
    namespace Acme\StoreBundle\Entity;

    use Doctrine\ORM\Mapping as ORM;

    /**
     * @ORM\Entity(repositoryClass="Acme\StoreBundle\Entity\ProductRepository")
     */
    class Product
    {
        //...
    }

  • YAML
    1
    2
    3
    4
    5
    # src/Acme/StoreBundle/Resources/config/doctrine/Product.orm.yml
    Acme\StoreBundle\Entity\Product:
        type: entity
        repositoryClass: Acme\StoreBundle\Entity\ProductRepository
        # ...

  • XML
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    <!-- src/Acme/StoreBundle/Resources/config/doctrine/Product.orm.xml -->

    <!-- ... -->
    <doctrine-mapping>

        <entity name="Acme\StoreBundle\Entity\Product"
                repository-class="Acme\StoreBundle\Entity\ProductRepository">
                <!-- ... -->
        </entity>
    </doctrine-mapping>


Doctrine can generate the repository class for you by running the same command used earlier to generate the missing getter and setter methods:

1
$ php app/console doctrine:generate:entities Acme

Next, add a new method - findAllOrderedByName() - to the newly generated repository class. This method will query for all of the Product entities, ordered alphabetically.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
// src/Acme/StoreBundle/Entity/ProductRepository.php
namespace Acme\StoreBundle\Entity;

use Doctrine\ORM\EntityRepository;

class ProductRepository extends EntityRepository
{
    public function findAllOrderedByName()
    {
        return $this->getEntityManager()
            ->createQuery('SELECT p FROM AcmeStoreBundle:Product p ORDER BY p.name ASC')
            ->getResult();
    }
}

Tip

The entity manager can be accessed via $this->getEntityManager() from inside the repository.

You can use this new method just like the default finder methods of the repository:

1
2
3
$em = $this->getDoctrine()->getManager();
$products = $em->getRepository('AcmeStoreBundle:Product')
            ->findAllOrderedByName();

Note

When using a custom repository class, you still have access to the default finder methods such as find() and findAll().

Entity Relationships/Associations

Suppose that the products in your application all belong to exactly one "category". In this case, you'll need a Category object and a way to relate a Product object to a Category object. Start by creating the Category entity. Since you know that you'll eventually need to persist the class through Doctrine, you can let Doctrine create the class for you.

1
$ php app/console doctrine:generate:entity --entity="AcmeStoreBundle:Category" --fields="name:string(255)"

This task generates the Category entity for you, with an id field, a name field and the associated getter and setter functions.

Relationship Mapping Metadata

To relate the Category and Product entities, start by creating a products property on the Category class:

  • Annotations
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    // src/Acme/StoreBundle/Entity/Category.php

    // ...
    use Doctrine\Common\Collections\ArrayCollection;

    class Category
    {
        // ...

        /**
         * @ORM\OneToMany(targetEntity="Product", mappedBy="category")
         */
        protected $products;

        public function __construct()
        {
            $this->products = new ArrayCollection();
        }
    }

  • YAML
    1
    2
    3
    4
    5
    6
    7
    8
    9
    # src/Acme/StoreBundle/Resources/config/doctrine/Category.orm.yml
    Acme\StoreBundle\Entity\Category:
        type: entity
        # ...
        oneToMany:
            products:
                targetEntity: Product
                mappedBy: category
        # don't forget to init the collection in entity __construct() method

  • XML
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    <!-- src/Acme/StoreBundle/Resources/config/doctrine/Category.orm.xml -->
    <doctrine-mapping xmlns="http://doctrine-project.org/schemas/orm/doctrine-mapping"
        xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
        xsi:schemaLocation="http://doctrine-project.org/schemas/orm/doctrine-mapping
                        http://doctrine-project.org/schemas/orm/doctrine-mapping.xsd">

        <entity name="Acme\StoreBundle\Entity\Category">
            <!-- ... -->
            <one-to-many field="products"
                target-entity="product"
                mapped-by="category"
            />

            <!-- don't forget to init the collection in entity __construct() method -->
        </entity>
    </doctrine-mapping>


First, since a Category object will relate to many Product objects, a products array property is added to hold those Product objects. Again, this isn't done because Doctrine needs it, but instead because it makes sense in the application for each Category to hold an array of Product objects.

Note

The code in the __construct() method is important because Doctrine requires the $products property to be an ArrayCollection object. This object looks and acts almost exactly like an array, but has some added flexibility. If this makes you uncomfortable, don't worry. Just imagine that it's an array and you'll be in good shape.

Tip

The targetEntity value in the decorator used above can reference any entity with a valid namespace, not just entities defined in the same class. To relate to an entity defined in a different class or bundle, enter a full namespace as the targetEntity.

Next, since each Product class can relate to exactly one Category object, you'll want to add a $category property to the Product class:

  • Annotations
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    // src/Acme/StoreBundle/Entity/Product.php

    // ...
    class Product
    {
        // ...

        /**
         * @ORM\ManyToOne(targetEntity="Category", inversedBy="products")
         * @ORM\JoinColumn(name="category_id", referencedColumnName="id")
         */
        protected $category;
    }

  • YAML
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    # src/Acme/StoreBundle/Resources/config/doctrine/Product.orm.yml
    Acme\StoreBundle\Entity\Product:
        type: entity
        # ...
        manyToOne:
            category:
                targetEntity: Category
                inversedBy: products
                joinColumn:
                    name: category_id
                    referencedColumnName: id

  • XML
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    <!-- src/Acme/StoreBundle/Resources/config/doctrine/Product.orm.xml -->
    <doctrine-mapping xmlns="http://doctrine-project.org/schemas/orm/doctrine-mapping"
        xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
        xsi:schemaLocation="http://doctrine-project.org/schemas/orm/doctrine-mapping
                        http://doctrine-project.org/schemas/orm/doctrine-mapping.xsd">

        <entity name="Acme\StoreBundle\Entity\Product">
            <!-- ... -->
            <many-to-one field="category"
                target-entity="products"
                join-column="category"
            >
                <join-column
                    name="category_id"
                    referenced-column-name="id"
                />
            </many-to-one>
        </entity>
    </doctrine-mapping>


Finally, now that you've added a new property to both the Category and Product classes, tell Doctrine to generate the missing getter and setter methods for you:

1
$ php app/console doctrine:generate:entities Acme

Ignore the Doctrine metadata for a moment. You now have two classes - Category and Product with a natural one-to-many relationship. The Category class holds an array of Product objects and the Product object can hold one Category object. In other words - you've built your classes in a way that makes sense for your needs. The fact that the data needs to be persisted to a database is always secondary.

Now, look at the metadata above the $category property on the Product class. The information here tells doctrine that the related class is Category and that it should store the id of the category record on a category_id field that lives on the product table. In other words, the related Category object will be stored on the $category property, but behind the scenes, Doctrine will persist this relationship by storing the category's id value on a category_id column of the product table.

../_images/doctrine_image_2.png

The metadata above the $products property of the Category object is less important, and simply tells Doctrine to look at the Product.category property to figure out how the relationship is mapped.

Before you continue, be sure to tell Doctrine to add the new category table, and product.category_id column, and new foreign key:

1
$ php app/console doctrine:schema:update --force

Note

This task should only be really used during development. For a more robust method of systematically updating your production database, read about Doctrine migrations.

More Information on Associations

This section has been an introduction to one common type of entity relationship, the one-to-many relationship. For more advanced details and examples of how to use other types of relations (e.g. one-to-one, many-to-many), see Doctrine's Association Mapping Documentation.

Note

If you're using annotations, you'll need to prepend all annotations with ORM\ (e.g. ORM\OneToMany), which is not reflected in Doctrine's documentation. You'll also need to include the use Doctrine\ORM\Mapping as ORM; statement, which imports the ORM annotations prefix.

Configuration

Doctrine is highly configurable, though you probably won't ever need to worry about most of its options. To find out more about configuring Doctrine, see the Doctrine section of the reference manual.

Lifecycle Callbacks

Sometimes, you need to perform an action right before or after an entity is inserted, updated, or deleted. These types of actions are known as "lifecycle" callbacks, as they're callback methods that you need to execute during different stages of the lifecycle of an entity (e.g. the entity is inserted, updated, deleted, etc).

If you're using annotations for your metadata, start by enabling the lifecycle callbacks. This is not necessary if you're using YAML or XML for your mapping:

1
2
3
4
5
6
7
8
/**
 * @ORM\Entity()
 * @ORM\HasLifecycleCallbacks()
 */
class Product
{
    // ...
}

Now, you can tell Doctrine to execute a method on any of the available lifecycle events. For example, suppose you want to set a created date column to the current date, only when the entity is first persisted (i.e. inserted):

  • Annotations
    1
    2
    3
    4
    5
    6
    7
    /**
     * @ORM\PrePersist
     */
    public function setCreatedValue()
    {
        $this->created = new \DateTime();
    }

  • YAML
    1
    2
    3
    4
    5
    6
    # src/Acme/StoreBundle/Resources/config/doctrine/Product.orm.yml
    Acme\StoreBundle\Entity\Product:
        type: entity
        # ...
        lifecycleCallbacks:
            prePersist: [setCreatedValue]

  • XML
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    <!-- src/Acme/StoreBundle/Resources/config/doctrine/Product.orm.xml -->

    <!-- ... -->
    <doctrine-mapping>

        <entity name="Acme\StoreBundle\Entity\Product">
                <!-- ... -->
                <lifecycle-callbacks>
                    <lifecycle-callback type="prePersist" method="setCreatedValue" />
                </lifecycle-callbacks>
        </entity>
    </doctrine-mapping>


Note

The above example assumes that you've created and mapped a created property (not shown here).

Now, right before the entity is first persisted, Doctrine will automatically call this method and the created field will be set to the current date.

This can be repeated for any of the other lifecycle events, which include:

  • preRemove
  • postRemove
  • prePersist
  • postPersist
  • preUpdate
  • postUpdate
  • postLoad
  • loadClassMetadata

For more information on what these lifecycle events mean and lifecycle callbacks in general, see Doctrine's Lifecycle Events documentation

Notice that the setCreatedValue() method receives no arguments. This is always the case for lifecycle callbacks and is intentional: lifecycle callbacks should be simple methods that are concerned with internally transforming data in the entity (e.g. setting a created/updated field, generating a slug value).

If you need to do some heavier lifting - like perform logging or send an email - you should register an external class as an event listener or subscriber and give it access to whatever resources you need. For more information, see How to Register Event Listeners and Subscribers.

Doctrine Extensions: Timestampable, Sluggable, etc.

Doctrine is quite flexible, and a number of third-party extensions are available that allow you to easily perform repeated and common tasks on your entities. These include thing such as Sluggable, Timestampable, Loggable, Translatable, and Tree.

For more information on how to find and use these extensions, see the cookbook article about using common Doctrine extensions.

Doctrine Field Types Reference

Doctrine comes with a large number of field types available. Each of these maps a PHP data type to a specific column type in whatever database you're using. The following types are supported in Doctrine:

  • Strings
    • string (used for shorter strings)
    • text (used for larger strings)
  • Numbers
    • integer
    • smallint
    • bigint
    • decimal
    • float
  • Dates and Times (use a DateTime object for these fields in PHP)
    • date
    • time
    • datetime
  • Other Types
    • boolean
    • object (serialized and stored in a CLOB field)
    • array (serialized and stored in a CLOB field)

For more information, see Doctrine's Mapping Types documentation.

Field Options

Each field can have a set of options applied to it. The available options include type (defaults to string), name, length, unique and nullable. Take a few examples:

  • Annotations
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    /**
     * A string field with length 255 that cannot be null
     * (reflecting the default values for the "type", "length"
     * and *nullable* options)
     *
     * @ORM\Column()
     */
    protected $name;

    /**
     * A string field of length 150 that persists to an "email_address" column
     * and has a unique index.
     *
     * @ORM\Column(name="email_address", unique=true, length=150)
     */
    protected $email;

  • YAML
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    fields:
        # A string field length 255 that cannot be null
        # (reflecting the default values for the "length" and *nullable* options)
        # type attribute is necessary in yaml definitions
        name:
            type: string

        # A string field of length 150 that persists to an "email_address" column
        # and has a unique index.
        email:
            type: string
            column: email_address
            length: 150
            unique: true

  • XML
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    <!--
        A string field length 255 that cannot be null
        (reflecting the default values for the "length" and *nullable* options)
        type attribute is necessary in xml definitions
    -->
    <field name="name" type="string" />
    <field name="email"
        type="string"
        column="email_address"
        length="150"
        unique="true"
    />


Note

There are a few more options not listed here. For more details, see Doctrine's Property Mapping documentation

Console Commands

The Doctrine2 ORM integration offers several console commands under the doctrine namespace. To view the command list you can run the console without any arguments:

1
$ php app/console

A list of available commands will print out, many of which start with the doctrine: prefix. You can find out more information about any of these commands (or any Symfony command) by running the help command. For example, to get details about the doctrine:database:create task, run:

1
$ php app/console help doctrine:database:create

Some notable or interesting tasks include:

  • doctrine:ensure-production-settings - checks to see if the current environment is configured efficiently for production. This should always be run in the prod environment:

    1
    $ php app/console doctrine:ensure-production-settings --env=prod

  • doctrine:mapping:import - allows Doctrine to introspect an existing database and create mapping information. For more information, see How to generate Entities from an Existing Database.

  • doctrine:mapping:info - tells you all of the entities that Doctrine is aware of and whether or not there are any basic errors with the mapping.

  • doctrine:query:dql and doctrine:query:sql - allow you to execute DQL or SQL queries directly from the command line.

Note

To be able to load data fixtures to your database, you will need to have the DoctrineFixturesBundle bundle installed. To learn how to do it, read the "DoctrineFixturesBundle" entry of the documentation.

Tip

This page shows working with Doctrine within a controller. You may also want to work with Doctrine elsewhere in your application. The getDoctrine() method of the controller returns the doctrine service, you can work with this in the same way elsewhere by injecting this into your own services. See Service Container for more on creating your own services.

Summary

With Doctrine, you can focus on your objects and how they're useful in your application and worry about database persistence second. This is because Doctrine allows you to use any PHP object to hold your data and relies on mapping metadata information to map an object's data to a particular database table.

And even though Doctrine revolves around a simple concept, it's incredibly powerful, allowing you to create complex queries and subscribe to events that allow you to take different actions as objects go through their persistence lifecycle.

For more information about Doctrine, see the Doctrine section of the cookbook, which includes the following articles:

This work is licensed under a Creative Commons Attribution-Share Alike 3.0 Unported License .
