The HttpKernel Component

2.0 version
Unmaintained

The HttpKernel Component

The HttpKernel Component provides a structured process for converting a Request into a Response by making use of the event dispatcher. It’s flexible enough to create a full-stack framework (Symfony), a micro-framework (Silex) or an advanced CMS system (Drupal).

Installation

You can install the component in many different ways:

The Workflow of a Request

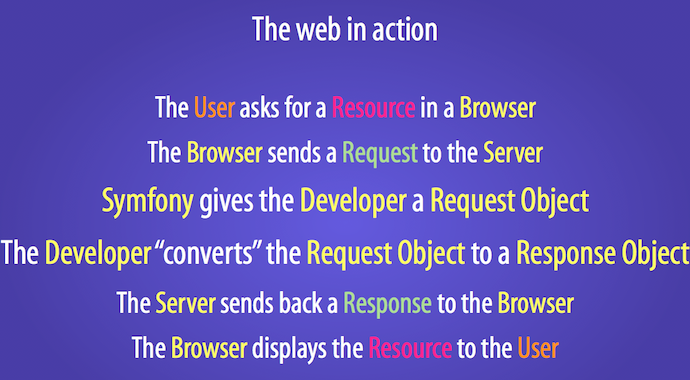

Every HTTP web interaction begins with a request and ends with a response. Your job as a developer is to create PHP code that reads the request information (e.g. the URL) and creates and returns a response (e.g. an HTML page or JSON string).

../../_images/request-response-flow.png

Typically, some sort of framework or system is built to handle all the repetitive tasks (e.g. routing, security, etc) so that a developer can easily build each page of the application. Exactly how these systems are built varies greatly. The HttpKernel component provides an interface that formalizes the process of starting with a request and creating the appropriate response. The component is meant to be the heart of any application or framework, no matter how varied the architecture of that system:

namespace Symfony\Component\HttpKernel;

use Symfony\Component\HttpFoundation\Request;

interface HttpKernelInterface
{
    // ...

    /**
     * @return Response A Response instance
     */
    public function handle(
        Request $request,
        $type = self::MASTER_REQUEST,
        $catch = true
    );
}

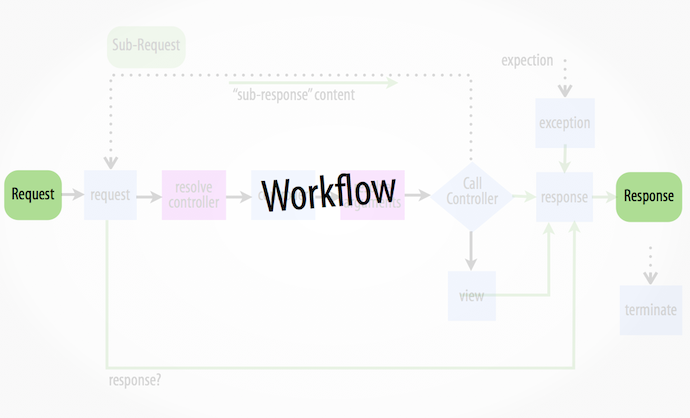

Internally, HttpKernel::handle() - the concrete implementation of HttpKernelInterface::handle() - defines a workflow that starts with a Symfony\Component\HttpFoundation\Request and ends with a Symfony\Component\HttpFoundation\Response.

../../_images/01-workflow.png

The exact details of this workflow are the key to understanding how the kernel (and the Symfony Framework or any other library that uses the kernel) works.

HttpKernel: Driven by Events

The HttpKernel::handle() method works internally by dispatching events. This makes the method both flexible, but also a bit abstract, since all the “work” of a framework/application built with HttpKernel is actually done in event listeners.

To help explain this process, this document looks at each step of the process and talks about how one specific implementation of the HttpKernel - the Symfony Framework - works.

Initially, using the Symfony\Component\HttpKernel\HttpKernel is really simple, and involves creating an event dispatcher and a controller resolver (explained below). To complete your working kernel, you’ll add more event listeners to the events discussed below:

use Symfony\Component\HttpFoundation\Request;
use Symfony\Component\HttpKernel\HttpKernel;
use Symfony\Component\EventDispatcher\EventDispatcher;
use Symfony\Component\HttpKernel\Controller\ControllerResolver;

// create the Request object
$request = Request::createFromGlobals();

$dispatcher = new EventDispatcher();
// ... add some event listeners

// create your controller resolver
$resolver = new ControllerResolver();
// instantiate the kernel
$kernel = new HttpKernel($dispatcher, $resolver);

// actually execute the kernel, which turns the request into a response
// by dispatching events, calling a controller, and returning the response
$response = $kernel->handle($request);

// echo the content and send the headers
$response->send();

See “A Full Working Example” for a more concrete implementation.

For general information on adding listeners to the events below, see Creating an Event Listener.

Tip

Fabien Potencier also wrote a wonderful series on using the HttpKernel component and other Symfony2 components to create your own framework. See Create your own framework… on top of the Symfony2 Components.

1) The kernel.request event

Typical Purposes: To add more information to the Request, initialize parts of the system, or return a Response if possible (e.g. a security layer that denies access)

Kernel Events Information Table

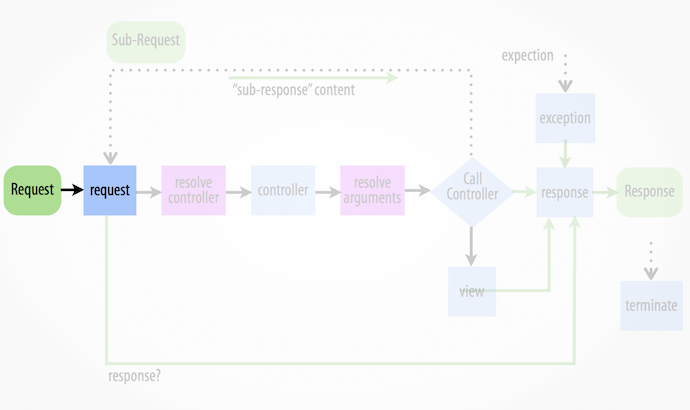

The first event that is dispatched inside HttpKernel::handle is kernel.request, which may have a variety of different listeners.

../../_images/02-kernel-request.png

Listeners of this event can be quite varied. Some listeners - such as a security listener - might have enough information to create a Response object immediately. For example, if a security listener determined that a user doesn’t have access, that listener may return a Symfony\Component\HttpFoundation\RedirectResponse to the login page or a 403 Access Denied response.

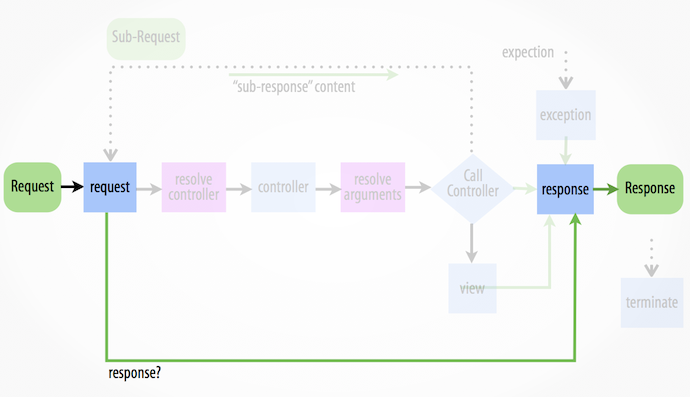

If a Response is returned at this stage, the process skips directly to the kernel.response event.

../../_images/03-kernel-request-response.png

Other listeners simply initialize things or add more information to the request. For example, a listener might determine and set the locale on the Session object.

Another common listener is routing. A router listener may process the Request and determine the controller that should be rendered (see the next section). In fact, the Request object has an “attributes” bag which is a perfect spot to store this extra, application-specific data about the request. This means that if your router listener somehow determines the controller, it can store it on the Request attributes (which can be used by your controller resolver).

Overall, the purpose of the kernel.request event is either to create and return a Response directly, or to add information to the Request (e.g. setting the locale or setting some other information on the Request attributes).

2) Resolve the Controller

Assuming that no kernel.request listener was able to create a Response, the next step in HttpKernel is to determine and prepare (i.e. resolve) the controller. The controller is the part of the end-application’s code that is responsible for creating and returning the Response for a specific page. The only requirement is that it is a PHP callable - i.e. a function, method on an object, or a Closure.

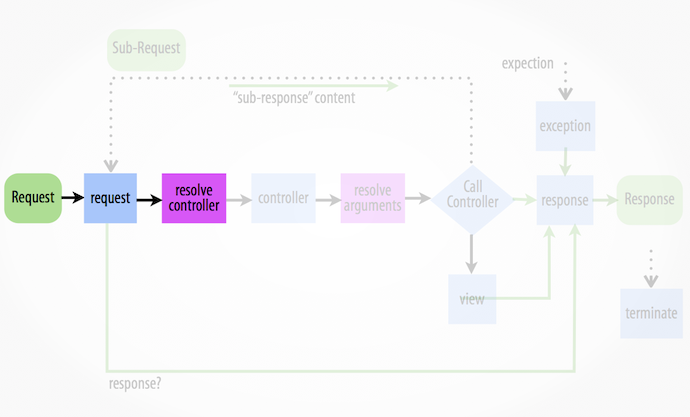

But how you determine the exact controller for a request is entirely up to your application. This is the job of the “controller resolver” - a class that implements Symfony\Component\HttpKernel\Controller\ControllerResolverInterface and is one of the constructor arguments to HttpKernel.

../../_images/04-resolve-controller.png

Your job is to create a class that implements the interface and fill in its two methods: getController and getArguments. In fact, one default implementation already exists, which you can use directly or learn from: Symfony\Component\HttpKernel\Controller\ControllerResolver. This implementation is explained more in the sidebar below:

namespace Symfony\Component\HttpKernel\Controller;

use Symfony\Component\HttpFoundation\Request;

interface ControllerResolverInterface
{
    public function getController(Request $request);

    public function getArguments(Request $request, $controller);
}

Internally, the HttpKernel::handle method first calls getController() on the controller resolver. This method is passed the Request and is responsible for somehow determining and returning a PHP callable (the controller) based on the request’s information.

The second method, getArguments(), will be called after another event - kernel.controller - is dispatched.

3) The kernel.controller event

Typical Purposes: Initialize things or change the controller just before the controller is executed.

Kernel Events Information Table

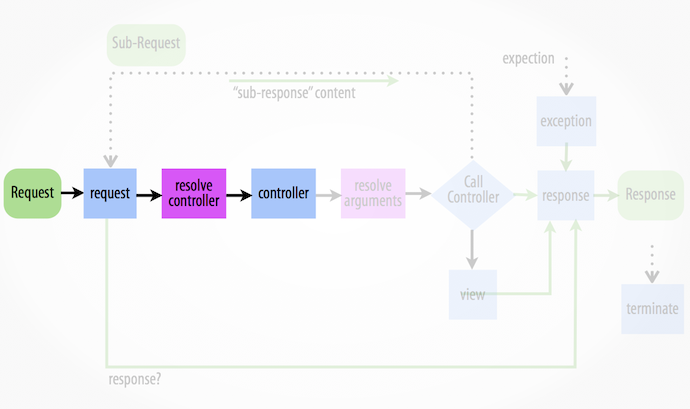

After the controller callable has been determined, HttpKernel::handle dispatches the kernel.controller event. Listeners to this event might initialize some part of the system that needs to be initialized after certain things have been determined (e.g. the controller, routing information) but before the controller is executed. For some examples, see the Symfony2 section below.

../../_images/06-kernel-controller.png

Listeners to this event can also change the controller callable completely by calling FilterControllerEvent::setController on the event object that’s passed to listeners on this event.

4) Getting the Controller Arguments

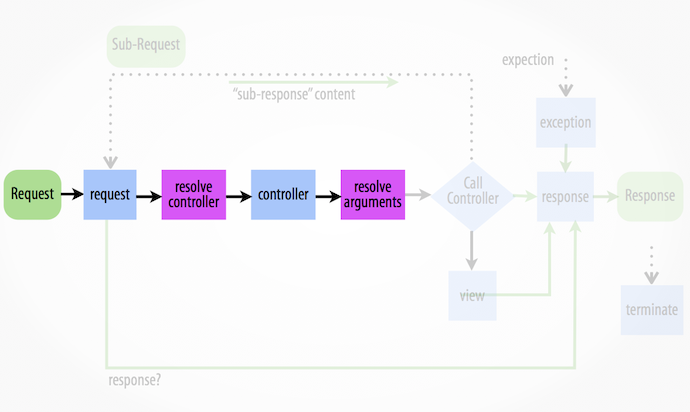

Next, HttpKernel::handle calls getArguments(). Remember that the controller returned in getController is a callable. The purpose of getArguments is to return the array of arguments that should be passed to that controller. Exactly how this is done is completely up to your design, though the built-in Symfony\Component\HttpKernel\Controller\ControllerResolver is a good example.

../../_images/07-controller-arguments.png

At this point the kernel has a PHP callable (the controller) and an array of arguments that should be passed when executing that callable.

5) Calling the Controller

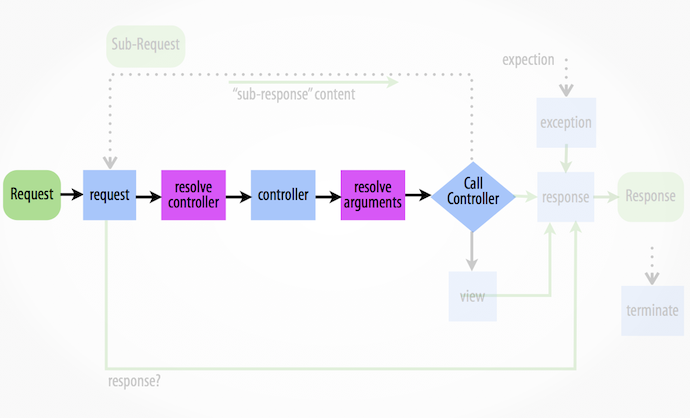

The next step is simple! HttpKernel::handle executes the controller.

../../_images/08-call-controller.png

The job of the controller is to build the response for the given resource. This could be an HTML page, a JSON string or anything else. Unlike every other part of the process so far, this step is implemented by the “end-developer”, for each page that is built.

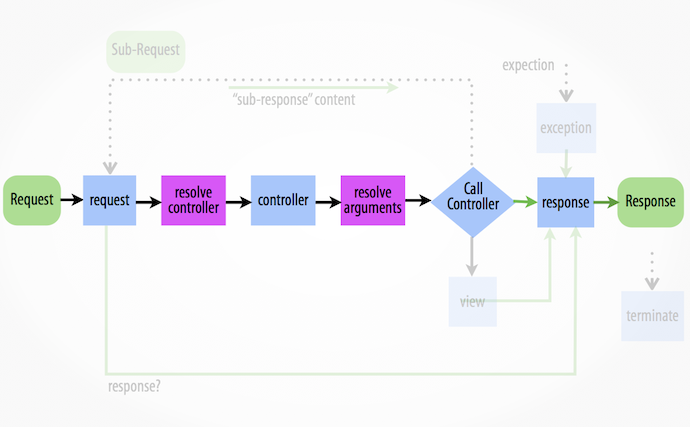

Usually, the controller will return a Response object. If this is true, then the work of the kernel is just about done! In this case, the next step is the kernel.response event.

../../_images/09-controller-returns-response.png

But if the controller returns anything besides a Response, then the kernel has a little bit more work to do - kernel.view (since the end goal is always to generate a Response object).

Note

A controller must return something. If a controller returns null, an exception will be thrown immediately.

6) The kernel.view event

Typical Purposes: Transform a non-Response return value from a controller into a Response

Kernel Events Information Table

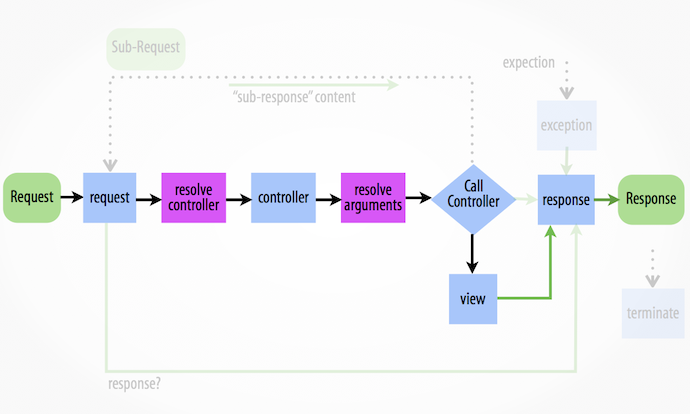

If the controller doesn’t return a Response object, then the kernel dispatches another event - kernel.view. The job of a listener to this event is to use the return value of the controller (e.g. an array of data or an object) to create a Response.

../../_images/10-kernel-view.png

This can be useful if you want to use a “view” layer: instead of returning a Response from the controller, you return data that represents the page. A listener to this event could then use this data to create a Response that is in the correct format (e.g HTML, json, etc).

At this stage, if no listener sets a response on the event, then an exception is thrown: either the controller or one of the view listeners must always return a Response.

7) The kernel.response event

Typical Purposes: Modify the Response object just before it is sent

Kernel Events Information Table

The end goal of the kernel is to transform a Request into a Response. The Response might be created during the kernel.request event, returned from the controller, or returned by one of the listeners to the kernel.view event.

Regardless of who creates the Response, another event - kernel.response is dispatched directly afterwards. A typical listener to this event will modify the Response object in some way, such as modifying headers, adding cookies, or even changing the content of the Response itself (e.g. injecting some JavaScript before the end </body> tag of an HTML response).

After this event is dispatched, the final Response object is returned from handle(). In the most typical use-case, you can then call the send() method, which sends the headers and prints the Response content.

Handling Exceptions:: the kernel.exception event

Typical Purposes: Handle some type of exception and create an appropriate Response to return for the exception

Kernel Events Information Table

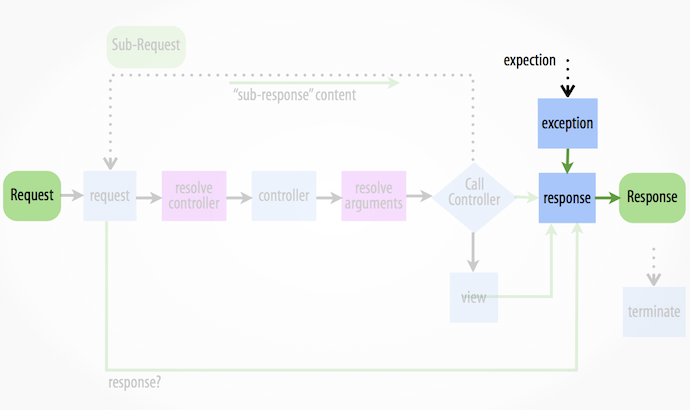

If an exception is thrown at any point inside HttpKernel::handle, another event - kernel.exception is thrown. Internally, the body of the handle function is wrapped in a try-catch block. When any exception is thrown, the kernel.exception event is dispatched so that your system can somehow respond to the exception.

../../_images/11-kernel-exception.png

Each listener to this event is passed a Symfony\Component\HttpKernel\Event\GetResponseForExceptionEvent object, which you can use to access the original exception via the getException() method. A typical listener on this event will check for a certain type of exception and create an appropriate error Response.

For example, to generate a 404 page, you might throw a special type of exception and then add a listener on this event that looks for this exception and creates and returns a 404 Response. In fact, the HttpKernel component comes with an Symfony\Component\HttpKernel\EventListener\ExceptionListener, which if you choose to use, will do this and more by default (see the sidebar below for more details).

Creating an Event Listener

As you’ve seen, you can create and attach event listeners to any of the events dispatched during the HttpKernel::handle cycle. Typically a listener is a PHP class with a method that’s executed, but it can be anything. For more information on creating and attaching event listeners, see The Event Dispatcher Component.

The name of each of the “kernel” events is defined as a constant on the Symfony\Component\HttpKernel\KernelEvents class. Additionally, each event listener is passed a single argument, which is some sub-class of Symfony\Component\HttpKernel\Event\KernelEvent. This object contains information about the current state of the system and each event has their own event object:

Name KernelEvents Constant Argument passed to the listener
kernel.request KernelEvents::REQUEST Symfony\Component\HttpKernel\Event\GetResponseEvent
kernel.controller KernelEvents::CONTROLLER Symfony\Component\HttpKernel\Event\FilterControllerEvent
kernel.view KernelEvents::VIEW Symfony\Component\HttpKernel\Event\GetResponseForControllerResultEvent
kernel.response KernelEvents::RESPONSE Symfony\Component\HttpKernel\Event\FilterResponseEvent
kernel.exception KernelEvents::EXCEPTION Symfony\Component\HttpKernel\Event\GetResponseForExceptionEvent

A Full Working Example

When using the HttpKernel component, you’re free to attach any listeners to the core events and use any controller resolver that implements the Symfony\Component\HttpKernel\Controller\ControllerResolverInterface. However, the HttpKernel component comes with some built-in listeners and a built-in ControllerResolver that can be used to create a working example:

use Symfony\Component\HttpFoundation\Request;
use Symfony\Component\HttpFoundation\Response;
use Symfony\Component\HttpKernel\HttpKernel;
use Symfony\Component\EventDispatcher\EventDispatcher;
use Symfony\Component\HttpKernel\Controller\ControllerResolver;
use Symfony\Component\Routing\RouteCollection;
use Symfony\Component\Routing\Route;
use Symfony\Component\Routing\Matcher\UrlMatcher;
use Symfony\Component\Routing\RequestContext;

$routes = new RouteCollection();
$routes->add('hello', new Route('/hello/{name}', array(
        '_controller' => function (Request $request) {
            return new Response(sprintf("Hello %s", $request->get('name')));
        }
    ),
));

$request = Request::createFromGlobals();

$matcher = new UrlMatcher($routes, new RequestContext());

$dispatcher = new EventDispatcher();
$dispatcher->addSubscriber(new RouterListener($matcher));

$resolver = new ControllerResolver();
$kernel = new HttpKernel($dispatcher, $resolver);

$response = $kernel->handle($request);
$response->send();

Sub Requests

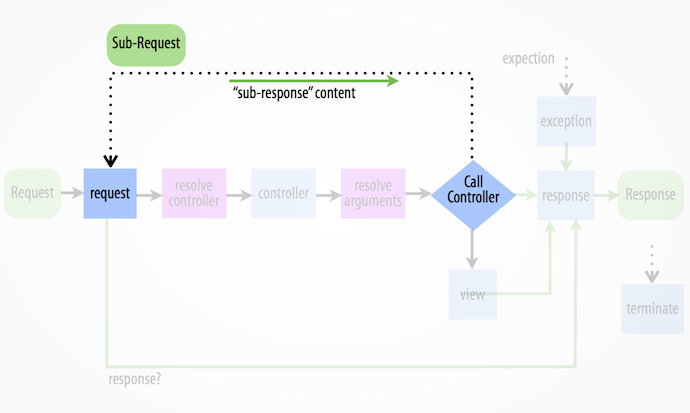

In addition to the “main” request that’s sent into HttpKernel::handle, you can also send so-called “sub request”. A sub request looks and acts like any other request, but typically serves to render just one small portion of a page instead of a full page. You’ll most commonly make sub-requests from your controller (or perhaps from inside a template, that’s being rendered by your controller).

../../_images/sub-request.png

To execute a sub request, use HttpKernel::handle, but change the second arguments as follows:

use Symfony\Component\HttpFoundation\Request;
use Symfony\Component\HttpKernel\HttpKernelInterface;

// ...

// create some other request manually as needed
$request = new Request();
// for example, possibly set its _controller manually
$request->attributes->add('_controller', '...');

$response = $kernel->handle($request, HttpKernelInterface::SUB_REQUEST);
// do something with this response

This creates another full request-response cycle where this new Request is transformed into a Response. The only difference internally is that some listeners (e.g. security) may only act upon the master request. Each listener is passed some sub-class of Symfony\Component\HttpKernel\Event\KernelEvent, whose getRequestType() can be used to figure out if the current request is a “master” or “sub” request.

For example, a listener that only needs to act on the master request may look like this:

use Symfony\Component\HttpKernel\HttpKernelInterface;
// ...

public function onKernelRequest(GetResponseEvent $event)
{
    if (HttpKernelInterface::MASTER_REQUEST !== $event->getRequestType()) {
        return;
    }

    // ...
}
