How to Dump Workflows

4.2 version

How to Dump WorkflowsΒΆ

To help you debug your workflows, you can generate a visual representation of them as SVG or PNG images. First, install any of these free and open source applications needed to generate the images:

  • Graphviz, provides the dot command;
  • PlantUML, provides the plantuml.jar file (which requires Java).

If you are defining the workflow inside a Symfony application, run this command to dump it as an image:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
# using Graphviz's 'dot' and SVG images
$ php bin/console workflow:dump workflow-name | dot -Tsvg -o graph.svg

# using Graphviz's 'dot' and PNG images
$ php bin/console workflow:dump workflow-name | dot -Tpng -o graph.png

# using PlantUML's 'plantuml.jar'
$ php bin/console workflow:dump workflow_name --dump-format=puml | java -jar plantuml.jar -p  > graph.png

# highlight 'place1' and 'place2' in the dumped workflow
$ php bin/console workflow:dump workflow-name place1 place2 | dot -Tsvg -o graph.svg

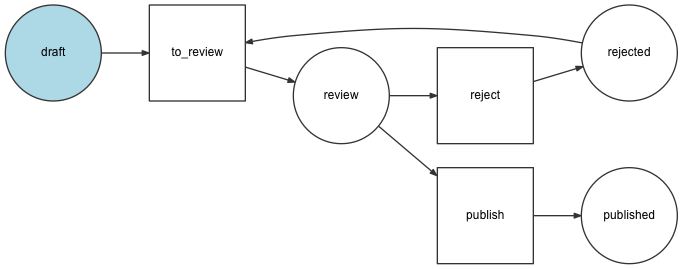

The DOT image will look like this:

../_images/blogpost.png

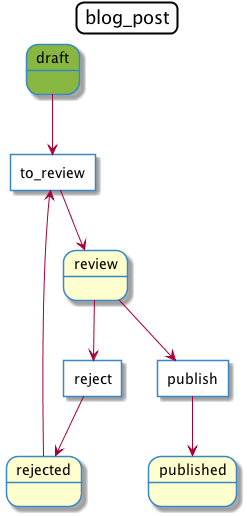

The PlantUML image will look like this:

../_images/blogpost_puml.png

If you are creating workflows outside of a Symfony application, use the GraphvizDumper or StateMachineGraphvizDumper class to create the DOT files and PlantUmlDumper to create the PlantUML files:

1
2
3
4
5
6
7
// Add this code to a PHP script; for example: dump-graph.php
$dumper = new GraphvizDumper();
echo $dumper->dump($definition);

# if you prefer PlantUML, use this code:
# $dumper = new PlantUmlDumper();
# echo $dumper->dump($definition);
1
2
3
# replace 'dump-graph.php' by the name of your PHP script
$ php dump-graph.php | dot -Tsvg -o graph.svg
$ php dump-graph.php | java -jar plantuml.jar -p  > graph.png
