Pushing Data to Clients Using the Mercure Protocol

Installation

1

$ composer require mercure

1

$ symfony server:start --no-tls -d

Configuration

The preferred way to configure MercureBundle is using environment variables.

When MercureBundle has been installed, the .env file of your project has been updated by the Flex recipe to include the available env vars.

Also, if you are using the Docker integration with the Symfony Local Web Server, Symfony Docker or the API Platform distribution, the proper environment variables have been automatically set. Skip straight to the next section.

Otherwise, set the URL of your hub as the value of the MERCURE_URL and MERCURE_PUBLIC_URL env vars. Sometimes a different URL must be called by the Symfony app (usually to publish), and the JavaScript client (usually to subscribe). It's especially common when the Symfony app must use a local URL and the client-side JavaScript code a public one. In this case, MERCURE_URL must contain the local URL used by the Symfony app (e.g. https://mercure/.well-known/mercure), and MERCURE_PUBLIC_URL the publicly available URL (e.g. https://example.com/.well-known/mercure).

The clients must also bear a JSON Web Token (JWT) to the Mercure Hub to be authorized to publish updates and, sometimes, to subscribe.

This token must be signed with the same secret key as the one used by the Hub to verify the JWT (!ChangeMe! if you use the Docker integration). This secret key must be stored in the MERCURE_JWT_SECRET environment variable. MercureBundle will use it to automatically generate and sign the needed JWTs.

In addition to these environment variables, MercureBundle provides a more advanced configuration:

• secret: the key to use to sign the JWT (all other options, beside algorithm, subscribe, and publish will be ignored)
• publish: a list of topics to allow publishing to when generating the JWT (only usable when secret, or factory are provided)
• subscribe: a list of topics to allow subscribing to when generating the JWT (only usable when secret, or factory are provided)
• algorithm: The algorithm to use to sign the JWT (only usable when secret is provided)
• provider: The ID of a service to call to provide the JWT (all other options will be ignored)
• factory: The ID of a service to call to create the JWT (all other options, beside subscribe, and publish will be ignored)
• value: the raw JWT to use (all other options will be ignored)

1
2
3
4
5
6
7
8
9
10
11
12
13

# config/packages/mercure.yaml
mercure:
    hubs:
        default:
            url: https://mercure-hub.example.com/.well-known/mercure
            jwt:
                secret: '!ChangeMe!'
                publish: ['foo', 'https://example.com/foo']
                subscribe: ['bar', 'https://example.com/bar']
                algorithm: 'hmac.sha256'
                provider: 'My\Provider'
                factory: 'My\Factory'
                value: 'my.jwt'

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

<!-- config/packages/mercure.xml -->
<?xml version="1.0" encoding="UTF-8" ?>
<config>
    <hub
        name="default"
        url="https://mercure-hub.example.com/.well-known/mercure"
    >
        <jwt
            secret="!ChangeMe!"
            algorithm="hmac.sha256"
            provider="My\Provider"
            factory="My\Factory"
            value="my.jwt"
        >
            <publish>foo</publish>
            <publish>https://example.com/foo</publish>
            <subscribe>bar</subscribe>
            <subscribe>https://example.com/bar</subscribe>
        </jwt>
    </hub>
</config>

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

// config/packages/mercure.php
$container->loadFromExtension('mercure', [
    'hubs' => [
        'default' => [
            'url' => 'https://mercure-hub.example.com/.well-known/mercure',
            'jwt' => [
                'secret' => '!ChangeMe!',
                'publish' => ['foo', 'https://example.com/foo'],
                'subscribe' => ['bar', 'https://example.com/bar'],
                'algorithm' => 'hmac.sha256',
                'provider' => 'My\Provider',
                'factory' => 'My\Factory',
                'value' => 'my.jwt',
            ],
        ],
    ],
]);

1
2
3
4
5

{
    "mercure": {
        "publish": ["*"]
    }
}

Basic Usage

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22

// src/Controller/PublishController.php
namespace App\Controller;

use Symfony\Bundle\FrameworkBundle\Controller\AbstractController;
use Symfony\Component\HttpFoundation\Response;
use Symfony\Component\Mercure\HubInterface;
use Symfony\Component\Mercure\Update;

class PublishController extends AbstractController
{
    public function publish(HubInterface $hub): Response
    {
        $update = new Update(
            'https://example.com/books/1',
            json_encode(['status' => 'OutOfStock'])
        );

        $hub->publish($update);

        return new Response('published!');
    }
}

Subscribing

Subscribing to updates in JavaScript from a Twig template is straightforward:

1
2
3
4
5
6
7

<script>
const eventSource = new EventSource("{{ mercure('https://example.com/books/1')|escape('js') }}");
eventSource.onmessage = event => {
    // Will be called every time an update is published by the server
    console.log(JSON.parse(event.data));
}
</script>

The mercure() Twig function generates the URL of the Mercure hub according to the configuration. The URL includes the topic query parameters corresponding to the topics passed as first argument.

If you want to access to this URL from an external JavaScript file, generate the URL in a dedicated HTML element:

1
2
3

<script type="application/json" id="mercure-url">
{{ mercure('https://example.com/books/1')|json_encode(constant('JSON_UNESCAPED_SLASHES') b-or constant('JSON_HEX_TAG'))|raw }}
</script>

Then retrieve it from your JS file:

1
2
3

const url = JSON.parse(document.getElementById("mercure-url").textContent);
const eventSource = new EventSource(url);
// ...

Mercure also allows subscribing to several topics, and to use URI Templates or the special value * (matched by all topics) as patterns:

1
2
3
4
5
6
7
8
9
10
11
12

<script>
{# Subscribe to updates of several Book resources and to all Review resources matching the given pattern #}
const eventSource = new EventSource("{{ mercure([
    'https://example.com/books/1',
    'https://example.com/books/2',
    'https://example.com/reviews/{id}'
])|escape('js') }}");

eventSource.onmessage = event => {
    console.log(JSON.parse(event.data));
}
</script>

Tip

Test if a URI Template matches a URL using the online debugger

Tip

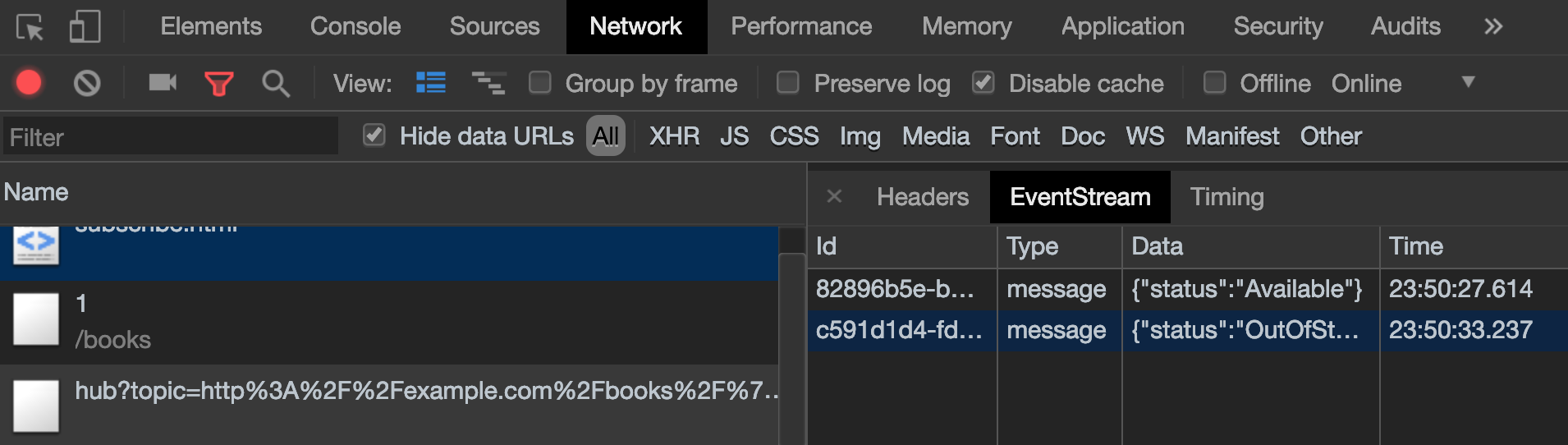

Google Chrome DevTools natively integrate a practical UI displaying in live the received events:

To use it:

• open the DevTools
• select the "Network" tab
• click on the request to the Mercure hub
• click on the "EventStream" sub-tab.

Discovery

The Mercure protocol comes with a discovery mechanism. To leverage it, the Symfony application must expose the URL of the Mercure Hub in a Link HTTP header.

You can create Link headers with the Discovery helper class (under the hood, it uses the WebLink Component):

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

// src/Controller/DiscoverController.php
namespace App\Controller;

use Symfony\Bundle\FrameworkBundle\Controller\AbstractController;
use Symfony\Component\HttpFoundation\JsonResponse;
use Symfony\Component\HttpFoundation\Request;
use Symfony\Component\Mercure\Discovery;

class DiscoverController extends AbstractController
{
    public function discover(Request $request, Discovery $discovery): JsonResponse
    {
        // Link: <https://hub.example.com/.well-known/mercure>; rel="mercure"
        $discovery->addLink($request);

        return $this->json([
            '@id' => '/books/1',
            'availability' => 'https://schema.org/InStock',
        ]);
    }
}

Then, this header can be parsed client-side to find the URL of the Hub, and to subscribe to it:

1
2
3
4
5
6
7
8
9
10
11
12
13
14

// Fetch the original resource served by the Symfony web API
fetch('/books/1') // Has Link: <https://hub.example.com/.well-known/mercure>; rel="mercure"
    .then(response => {
        // Extract the hub URL from the Link header
        const hubUrl = response.headers.get('Link').match(/<([^>]+)>;\s+rel=(?:mercure|"[^"]*mercure[^"]*")/)[1];

        // Append the topic(s) to subscribe as query parameter
        const hub = new URL(hubUrl, window.origin);
        hub.searchParams.append('topic', 'https://example.com/books/{id}');

        // Subscribe to updates
        const eventSource = new EventSource(hub);
        eventSource.onmessage = event => console.log(event.data);
    });

Authorization

Mercure also allows dispatching updates only to authorized clients. To do so, mark the update as private by setting the third parameter of the Update constructor to true:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

// src/Controller/Publish.php
namespace App\Controller;

use Symfony\Bundle\FrameworkBundle\Controller\AbstractController;
use Symfony\Component\HttpFoundation\Response;
use Symfony\Component\Mercure\Update;

class PublishController extends AbstractController
{
    public function publish(HubInterface $hub): Response
    {
        $update = new Update(
            'https://example.com/books/1',
            json_encode(['status' => 'OutOfStock']),
            true // private
        );

        // Publisher's JWT must contain this topic, a URI template it matches or * in mercure.publish or you'll get a 401
        // Subscriber's JWT must contain this topic, a URI template it matches or * in mercure.subscribe to receive the update
        $hub->publish($update);

        return new Response('private update published!');
    }
}

To subscribe to private updates, subscribers must provide to the Hub a JWT containing a topic selector matching by the topic of the update.

To provide this JWT, the subscriber can use a cookie, or an Authorization HTTP header.

Cookies can be set automatically by Symfony by passing the appropriate options to the mercure() Twig function. Cookies set by Symfony are automatically passed by the browsers to the Mercure hub if the withCredentials attribute of the EventSource class is set to true. Then, the Hub verifies the validity of the provided JWT, and extract the topic selectors from it.

1
2
3
4
5

<script>
const eventSource = new EventSource("{{ mercure('https://example.com/books/1', { subscribe: 'https://example.com/books/1' })|escape('js') }}", {
    withCredentials: true
});
</script>

The supported options are:

• subscribe: the list of topic selectors to include in the mercure.subscribe claim of the JWT
• publish: the list of topic selectors to include in the mercure.publish claim of the JWT
• additionalClaims: extra claims to include in the JWT (expiration date, token ID...)

Using cookies is the most secure and preferred way when the client is a web browser. If the client is not a web browser, then using an authorization header is the way to go.

1
2
3
4
5
6
7

<script>
const es = new EventSourcePolyfill("{{ mercure('https://example.com/books/1') }}", {
    headers: {
        'Authorization': 'Bearer ' + token,
    }
});
</script>

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22

// src/Controller/DiscoverController.php
namespace App\Controller;

use Symfony\Bundle\FrameworkBundle\Controller\AbstractController;
use Symfony\Component\HttpFoundation\JsonResponse;
use Symfony\Component\HttpFoundation\Request;
use Symfony\Component\Mercure\Authorization;
use Symfony\Component\Mercure\Discovery;

class DiscoverController extends AbstractController
{
    public function publish(Request $request, Discovery $discovery, Authorization $authorization): JsonResponse
    {
        $discovery->addLink($request);
        $authorization->setCookie($request, ['https://example.com/books/1']);

        return $this->json([
            '@id' => '/demo/books/1',
            'availability' => 'https://schema.org/InStock'
        ]);
    }
}

Programmatically Generating The JWT Used to Publish

Instead of directly storing a JWT in the configuration, you can create a token provider that will return the token used by the HubInterface object:

1
2
3
4
5
6
7
8
9
10
11
12

// src/Mercure/MyTokenProvider.php
namespace App\Mercure;

use Symfony\Component\Mercure\Jwt\TokenProviderInterface;

final class MyTokenProvider implements TokenProviderInterface
{
    public function getJwt(): string
    {
        return 'the-JWT';
    }
}

Then, reference this service in the bundle configuration:

1
2
3
4
5
6
7

# config/packages/mercure.yaml
mercure:
    hubs:
        default:
            url: https://mercure-hub.example.com/.well-known/mercure
            jwt:
                provider: App\Mercure\MyTokenProvider

1
2
3
4
5
6
7
8
9
10

<!-- config/packages/mercure.xml -->
<?xml version="1.0" encoding="UTF-8" ?>
<config>
    <hub
        name="default"
        url="https://mercure-hub.example.com/.well-known/mercure"
    >
        <jwt provider="App\Mercure\MyTokenProvider"/>
    </hub>
</config>

1
2
3
4
5
6
7
8
9
10
11
12
13

// config/packages/mercure.php
use App\Mercure\MyJwtProvider;

$container->loadFromExtension('mercure', [
    'hubs' => [
        'default' => [
            'url' => 'https://mercure-hub.example.com/.well-known/mercure',
            'jwt' => [
                'provider' => MyJwtProvider::class,
            ],
        ],
    ],
]);

This method is especially convenient when using tokens having an expiration date, that can be refreshed programmatically.

Web APIs

When creating a web API, it's convenient to be able to instantly push new versions of the resources to all connected devices, and to update their views.

API Platform can use the Mercure Component to dispatch updates automatically, every time an API resource is created, modified or deleted.

Start by installing the library using its official recipe:

1

$ composer require api

Then, creating the following entity is enough to get a fully-featured hypermedia API, and automatic update broadcasting through the Mercure hub:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

// src/Entity/Book.php
namespace App\Entity;

use ApiPlatform\Core\Annotation\ApiResource;
use Doctrine\ORM\Mapping as ORM;

#[ApiResource(mercure: true)]
#[ORM\Entity]
class Book
{
    #[ORM\Id]
    #[ORM\Column]
    public string $name = '';

    #[ORM\Column]
    public string $status = '';
}

As showcased in this recording, the API Platform Client Generator also allows to scaffold complete React and React Native applications from this API. These applications will render the content of Mercure updates in real-time.

Checkout the dedicated API Platform documentation to learn more about its Mercure support.

Testing

During unit testing it's usually not needed to send updates to Mercure.

You can instead make use of the MockHub class:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

// tests/FunctionalTest.php
namespace App\Tests\Unit\Controller;

use App\Controller\MessageController;
use Symfony\Component\Mercure\HubInterface;
use Symfony\Component\Mercure\JWT\StaticTokenProvider;
use Symfony\Component\Mercure\MockHub;
use Symfony\Component\Mercure\Update;

class MessageControllerTest extends TestCase
{
    public function testPublishing()
    {
        $hub = new MockHub('https://internal/.well-known/mercure', new StaticTokenProvider('foo'), function(Update $update): string {
            // $this->assertTrue($update->isPrivate());

            return 'id';
        });

        $controller = new MessageController($hub);

        // ...
    }
}

For functional testing, you can instead create a stub of the Hub:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

// tests/Functional/Stub/HubStub.php
namespace App\Tests\Functional\Stub;

use Symfony\Component\Mercure\HubInterface;
use Symfony\Component\Mercure\Update;

class HubStub implements HubInterface
{
    public function publish(Update $update): string
    {
        return 'id';
    }

    // implement rest of HubInterface methods here
}

Use HubStub to replace the default hub service so no updates are actually sent:

1
2
3
4

# config/services_test.yaml
services:
    mercure.hub.default:
        class: App\Tests\Functional\Stub\HubStub

As MercureBundle support multiple hubs, you may have to replace the other service definitions accordingly.

Debugging

Enable the panel in your configuration, as follows:

MercureBundle is shipped with a debug panel. Install the Debug pack to enable it:

1

$ composer require --dev symfony/debug-pack

Async dispatching

Instead of calling the Publisher service directly, you can also let Symfony dispatching the updates asynchronously thanks to the provided integration with the Messenger component.

First, be sure to install the Messenger component and to configure properly a transport (if you don't, the handler will be called synchronously).

Then, dispatch the Mercure Update to the Messenger's Message Bus, it will be handled automatically:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

// src/Controller/PublishController.php
namespace App\Controller;

use Symfony\Bundle\FrameworkBundle\Controller\AbstractController;
use Symfony\Component\HttpFoundation\Response;
use Symfony\Component\Mercure\Update;
use Symfony\Component\Messenger\MessageBusInterface;

class PublishController extends AbstractController
{
    public function publish(MessageBusInterface $bus): Response
    {
        $update = new Update(
            'https://example.com/books/1',
            json_encode(['status' => 'OutOfStock'])
        );

        // Sync, or async (Doctrine, RabbitMQ, Kafka...)
        $bus->dispatch($update);

        return new Response('published!');
    }
}

Going further

• The Mercure protocol is also supported by the Notifier component. Use it to send push notifications to web browsers.
• Symfony UX Turbo is a library using Mercure to provide the same experience as with Single Page Applications but without having to write a single line of JavaScript!
